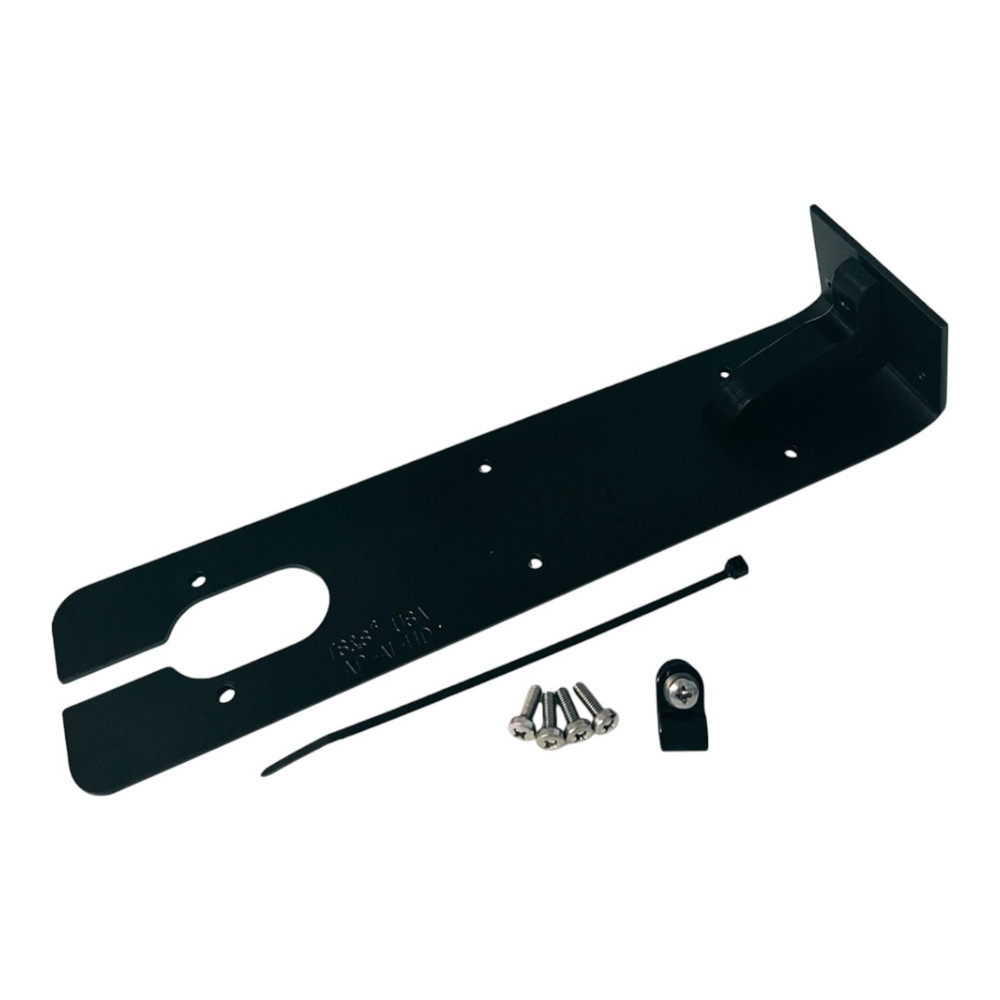

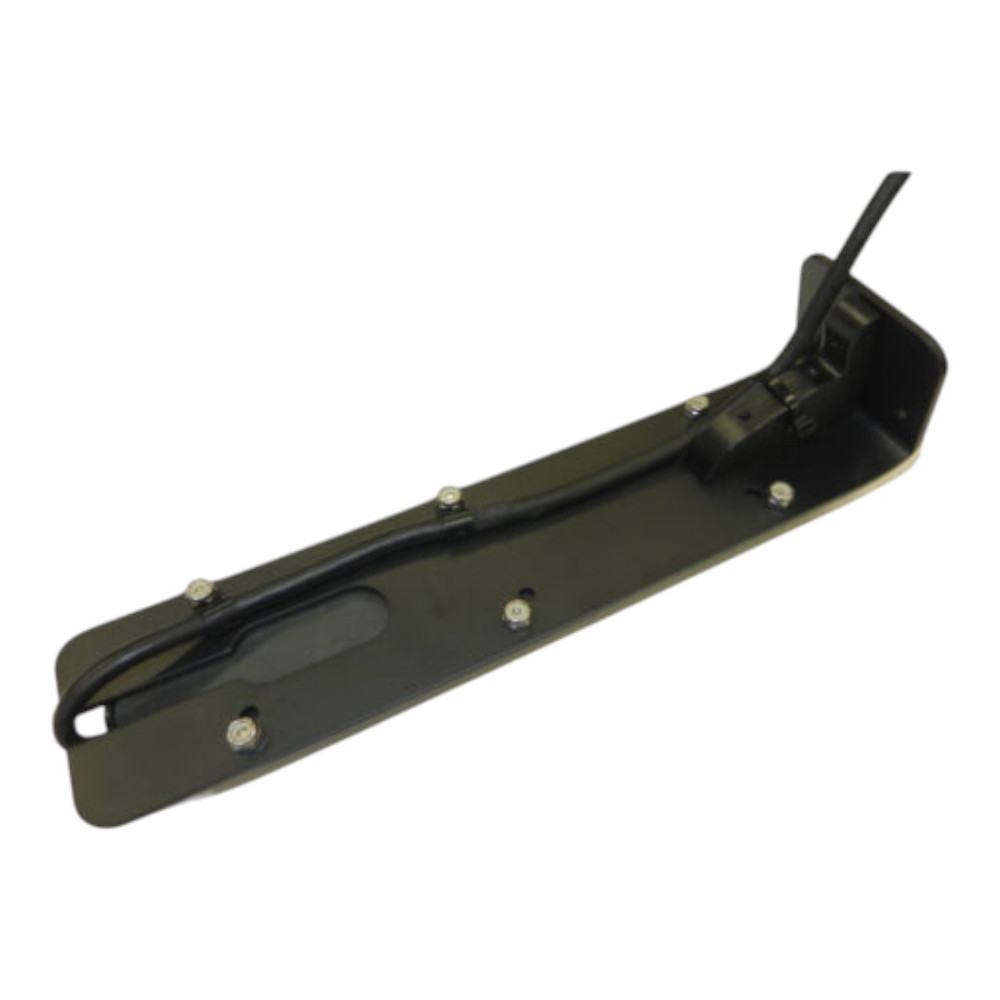

Lowrance Transducer Armor Plates for Active Imaging HD, TotalScan & StructureScan
The Transducer Shield & Saver Lowrance Armor Plate range is designed to provide superior protection for compatible Lowrance and Simrad transducers against impacts from the front, rear and sides. Replacing the factory transom mounting bracket, these heavy-duty Armor Plates help safeguard expensive sonar transducers while maintaining the correct scanning angle for optimum performance.
Manufactured from premium 6061 aluminium alloy and finished in a durable black powder coat, each Armor Plate is engineered specifically for its compatible transducer and mounting application.
Available Options

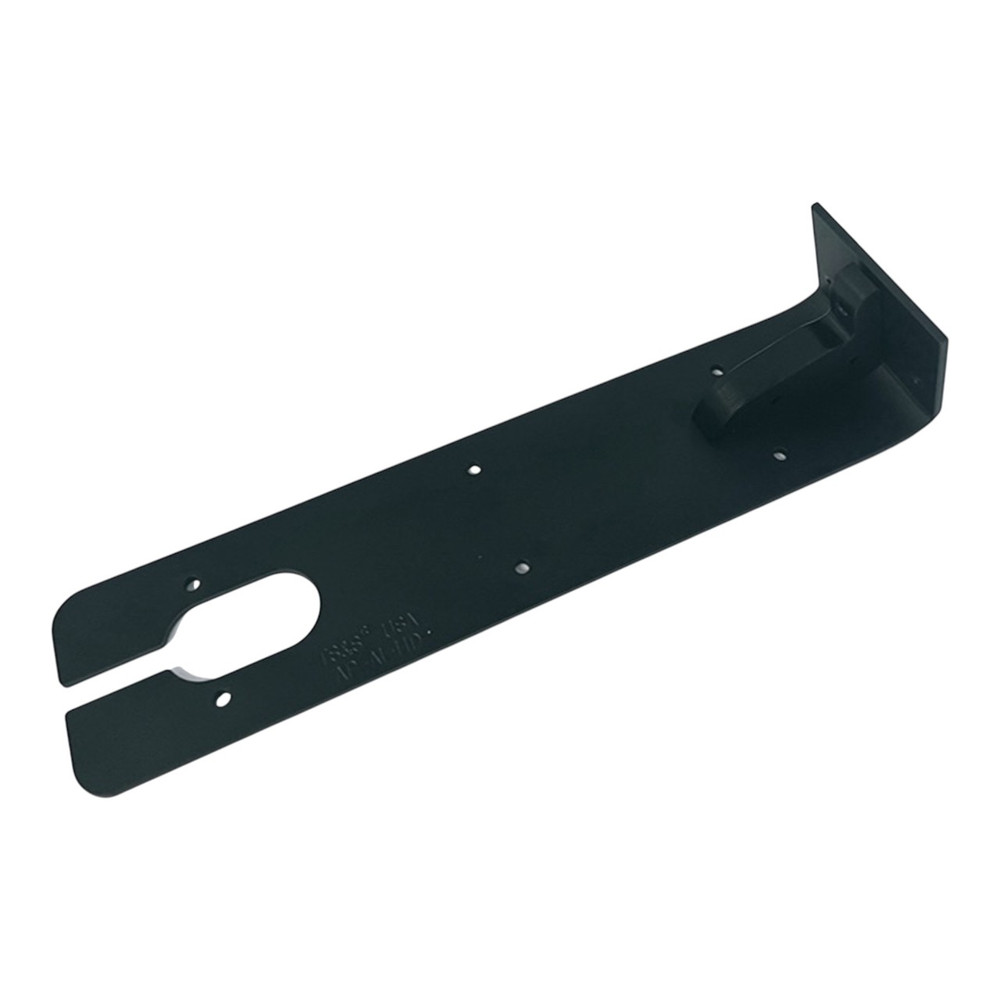

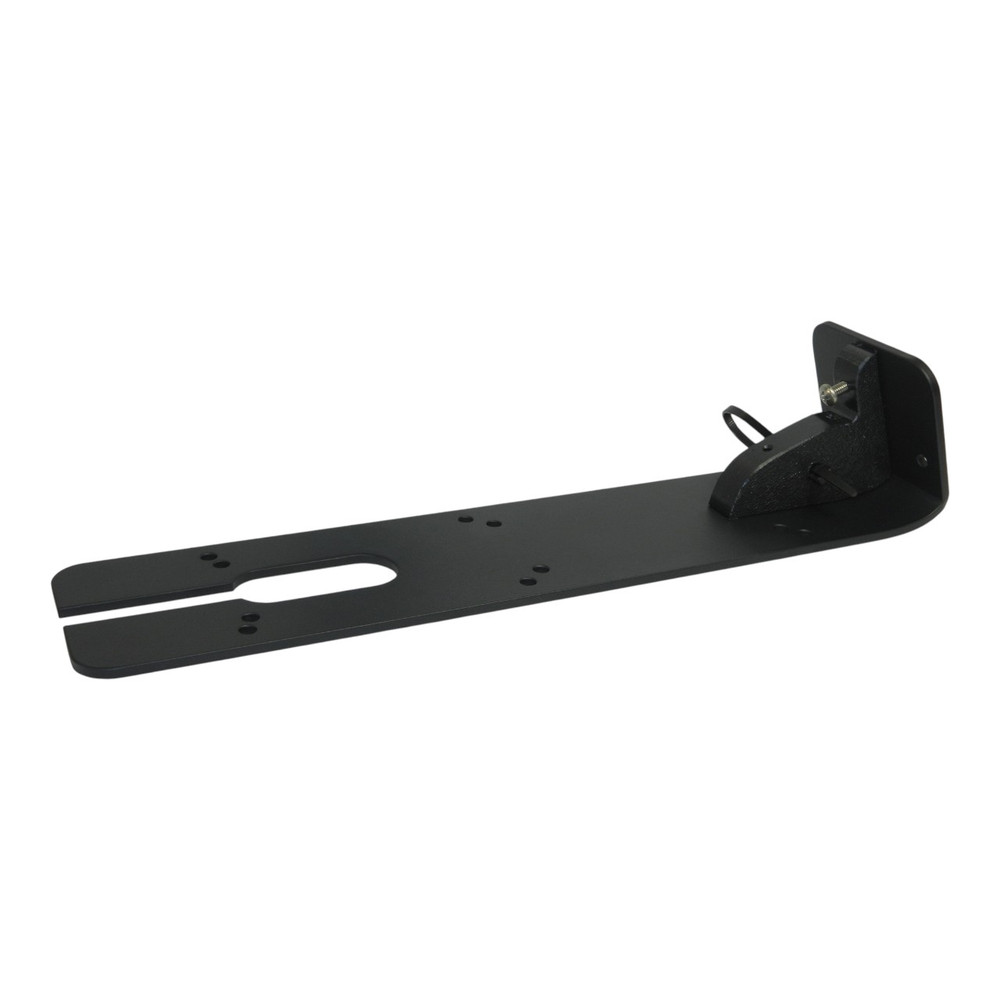

- AP-AI-HD – Suits Lowrance Active Imaging HD 3-in-1 Transducer (000-16062-001)
- AP-AI-HD-90 Degree – Suits Lowrance Active Imaging HD 3-in-1 Transducer (000-16062-001) for pontoon and vertical transoms

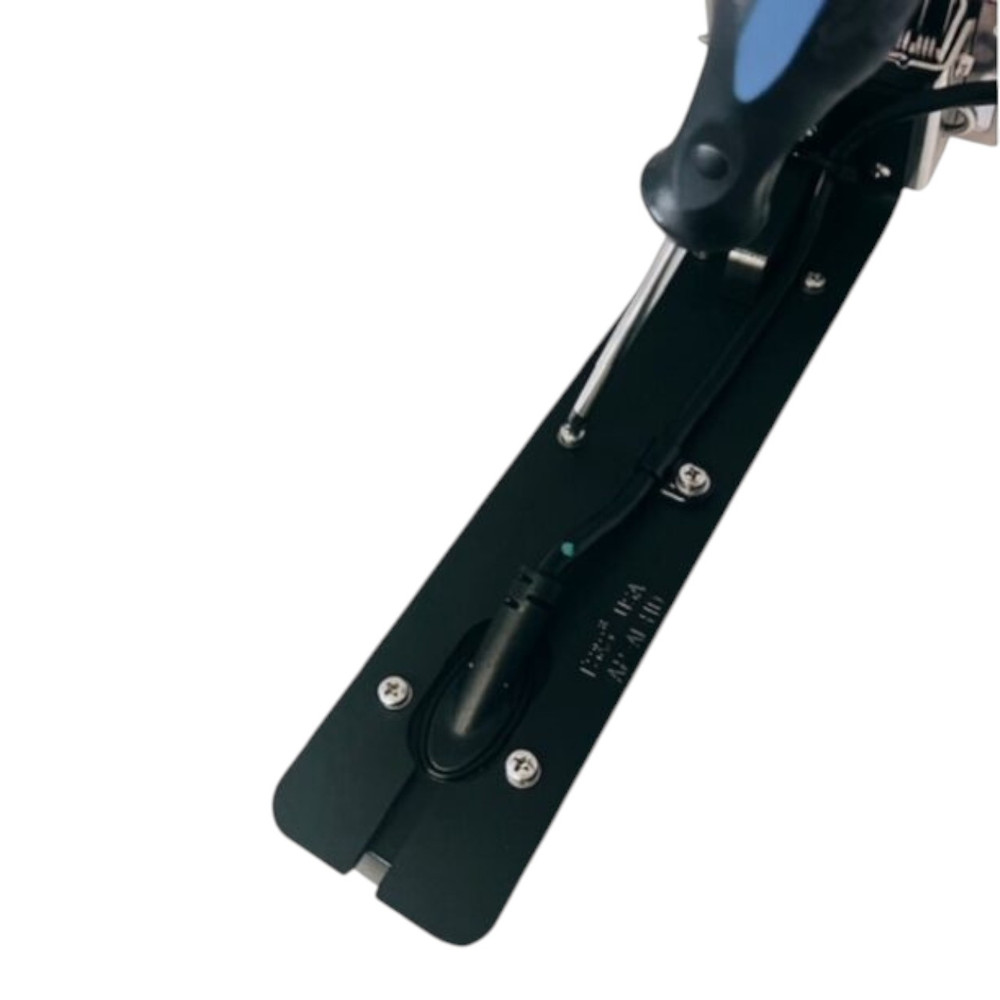

- AP-TS-3D – Suits Lowrance TotalScan, StructureScan 3D, LSS2, Active Imaging 3-in-1 and Active Imaging 2-in-1 transducers
Key Features
- Protects against front, rear and side impacts
- Replaces the factory transom mounting bracket
- Precision-machined from 6061 aluminium alloy
- Durable black powder-coated finish
- Pre-angled for optimum sonar performance on standard bass boats, bay boats and skiffs
- 90° model available for pontoon and boats with vertical transoms
- Proudly designed and built in the USA
Compatible Transducers
AP-AI-HD
- Lowrance Active Imaging HD 3-in-1
- Part Number: 000-16062-001
AP-AI-HD-90 Degree
- Lowrance Active Imaging HD 3-in-1
- Part Number: 000-16062-001
- Designed for pontoon boats and vertical transoms
AP-TS-3D
- Lowrance TotalScan
- Lowrance StructureScan 3D
- Lowrance LSS2 StructureScan
- Lowrance Active Imaging 3-in-1
- Lowrance Active Imaging 2-in-1
- Simrad compatible models using the same transducer platform
Important Compatibility Information
Lowrance has produced several transducers with similar shapes and model names. Before ordering, carefully compare your transducer with the identification guide below to ensure you select the correct Armor Plate.
Maximum Protection Recommended

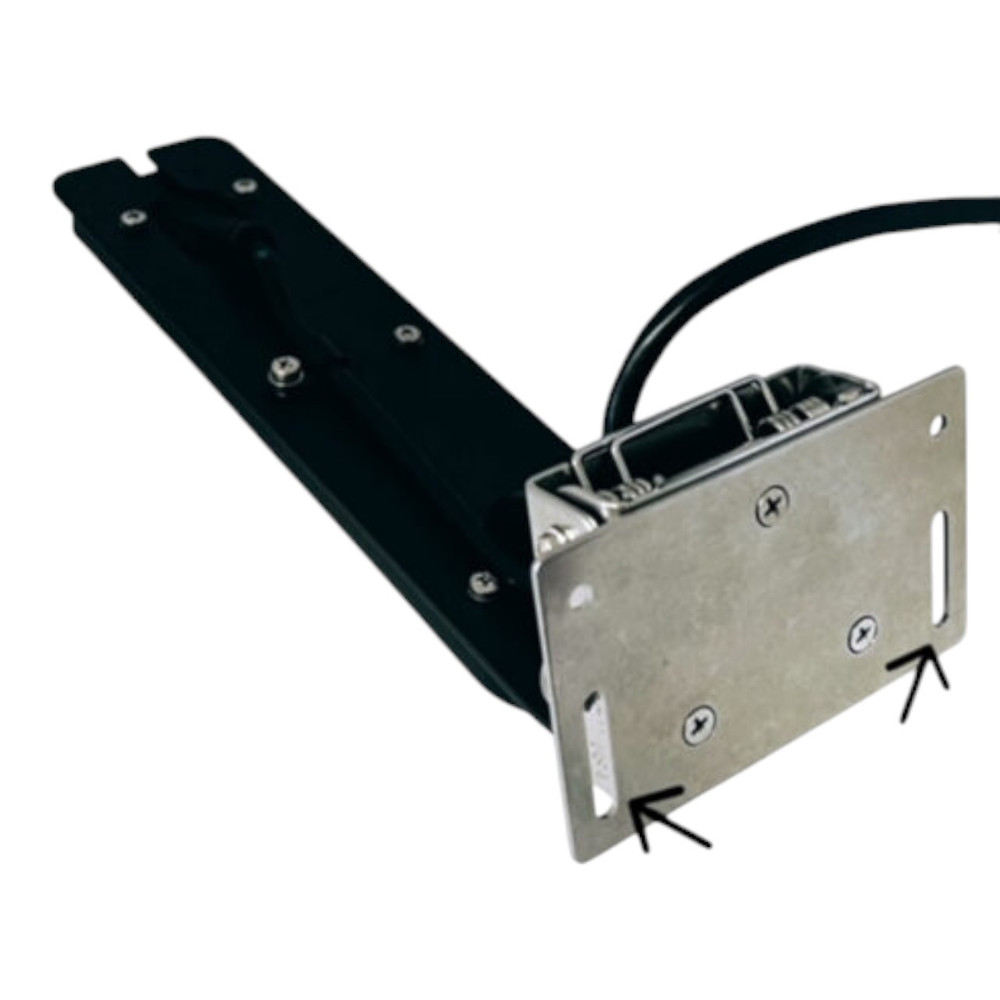

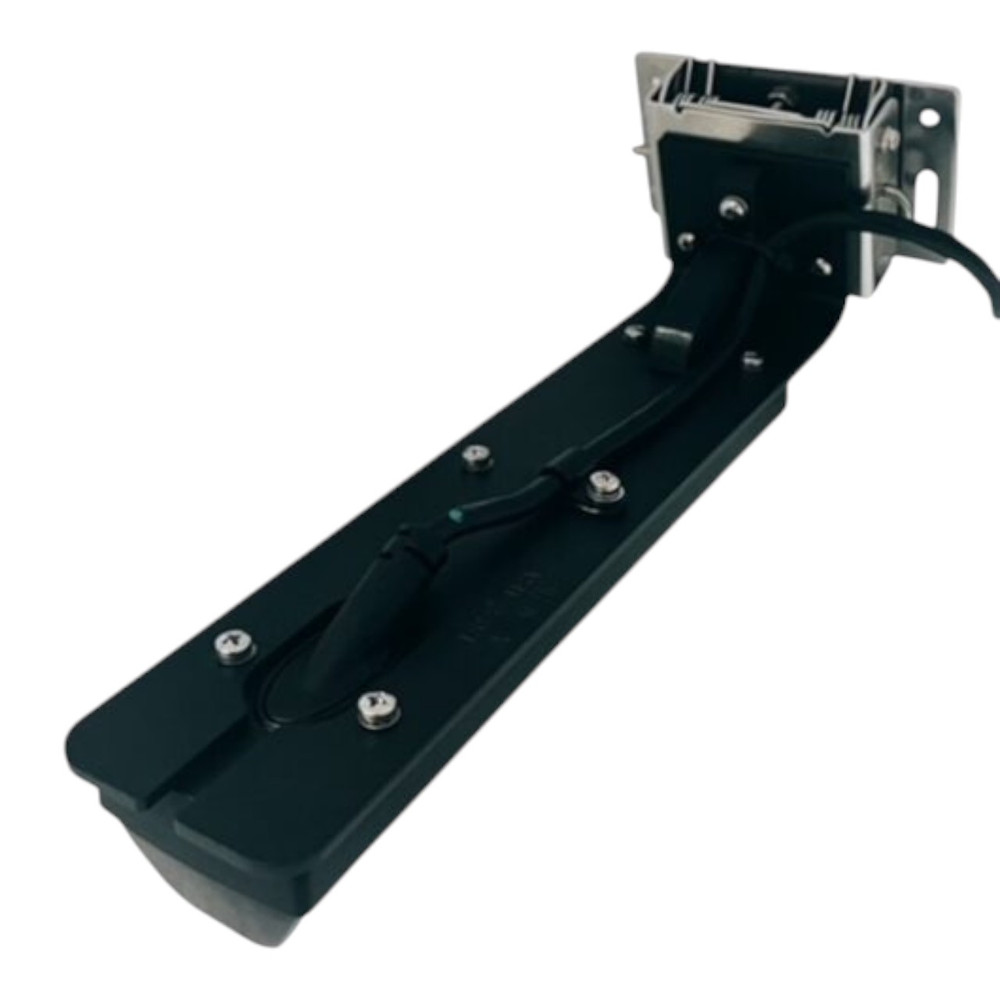

For the highest level of transducer protection, Transducer Shield & Saver recommends installing every Armor Plate with the SBB-5 Stainless Steel Spring Back Bracket. The Spring Back Bracket absorbs impacts from submerged objects by allowing the transducer to pivot backwards before automatically returning to its original position.
Please Note: Armor Plates installed without a Spring Back Bracket are not covered under the Transducer Shield & Saver Armor Plate warranty if the Armor Plate is damaged through impact.
Why Choose Transducer Shield & Saver?
Transducer Shield & Saver Armor Plates are engineered to provide professional-grade protection for today's expensive sonar transducers. Precision manufacturing, premium materials and application-specific designs help maximise both durability and sonar performance on the water.
Why Buy from Boaters World?
Boaters World is an Australian stockist of Transducer Shield & Saver products, supplying premium transducer protection systems, mounting solutions and marine spare parts. We stock genuine TSS products to help you build a reliable sonar installation using components engineered to work together.
