Stainless Steel Spring-Back Transducer Mount with Dual Springs
The Transducer Shield & Saver SBB-5 Stainless Steel Spring-Back Transducer Mount is engineered to protect your valuable transducer from impacts with submerged timber, rocks, stumps and other underwater obstacles. Featuring a patented dual-spring design, the SBB-5 allows the transducer to pivot backwards when it strikes an obstruction before automatically returning to its original operating position.
Whether you're installing a factory transducer bracket or a Transducer Shield & Saver Armor Plate, the SBB-5 provides the highest level of impact protection while helping extend the life of your sonar equipment.
Available Options
- SBB-5 – Stainless Steel Spring-Back Bracket with dual springs.

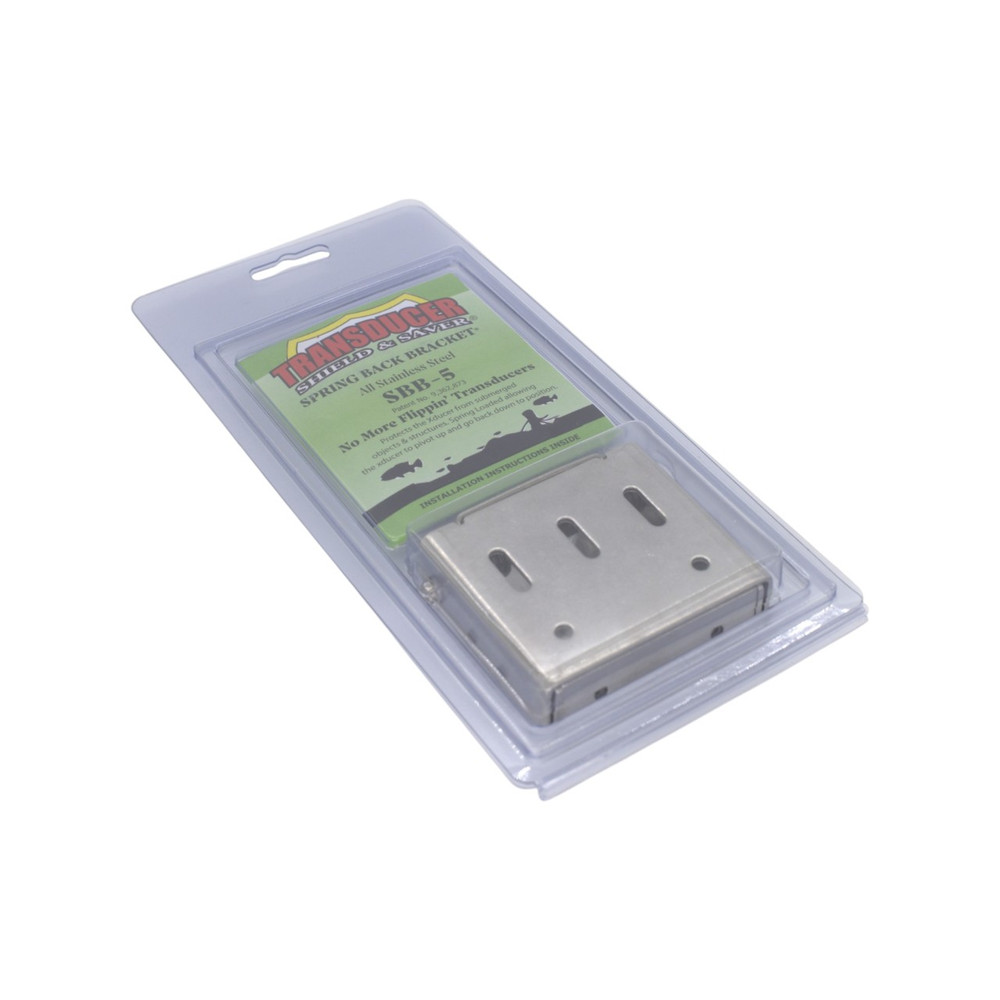

- SBB-5 Combo – Includes the Spring-Back Bracket plus the Stainless Steel Backing Plate and Axle Assembling Tool for easier installation and servicing.
Key Features

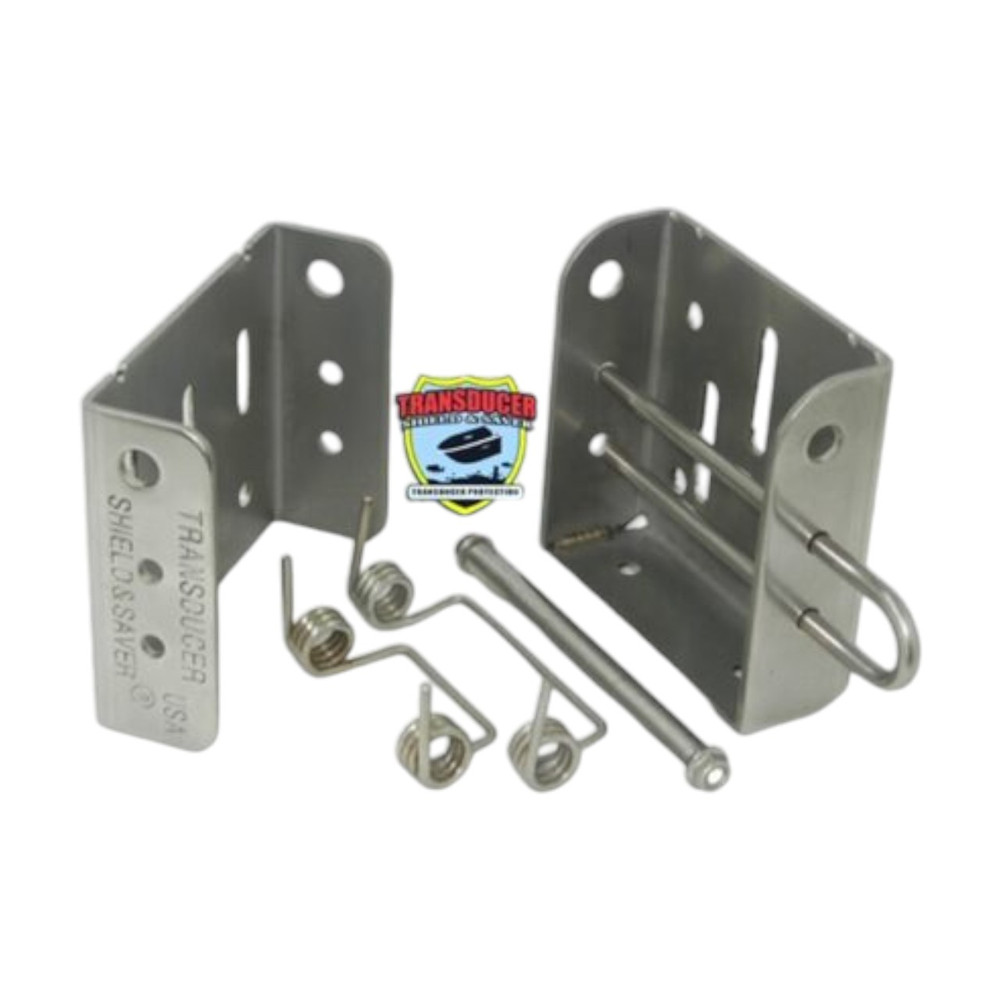

- Patented dual-spring impact protection system
- Allows the transducer to pivot over submerged obstacles before automatically returning to position
- Manufactured from marine-grade stainless steel
- Compatible with factory transducer brackets and TSS Armor Plates
- Includes stainless steel mounting hardware
- Multiple mounting slots for fine adjustment
- Designed and patented in the USA
How It Works

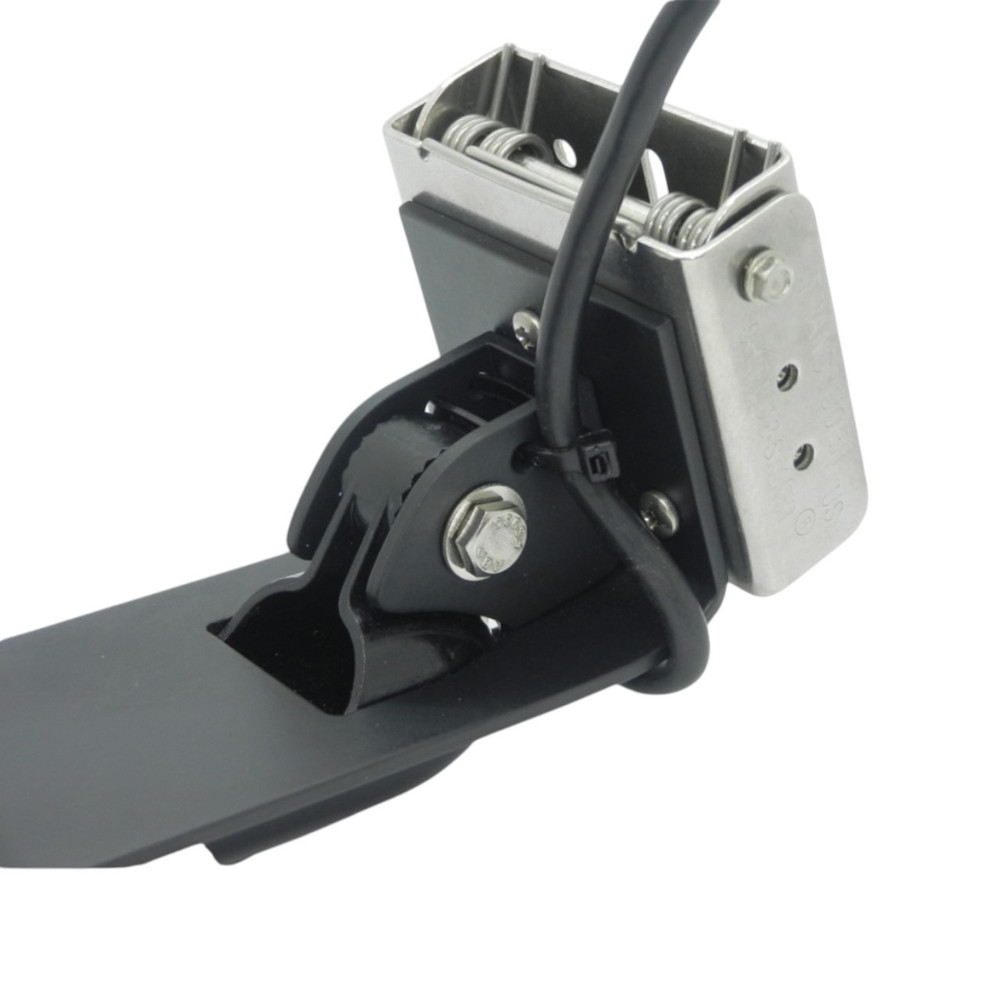

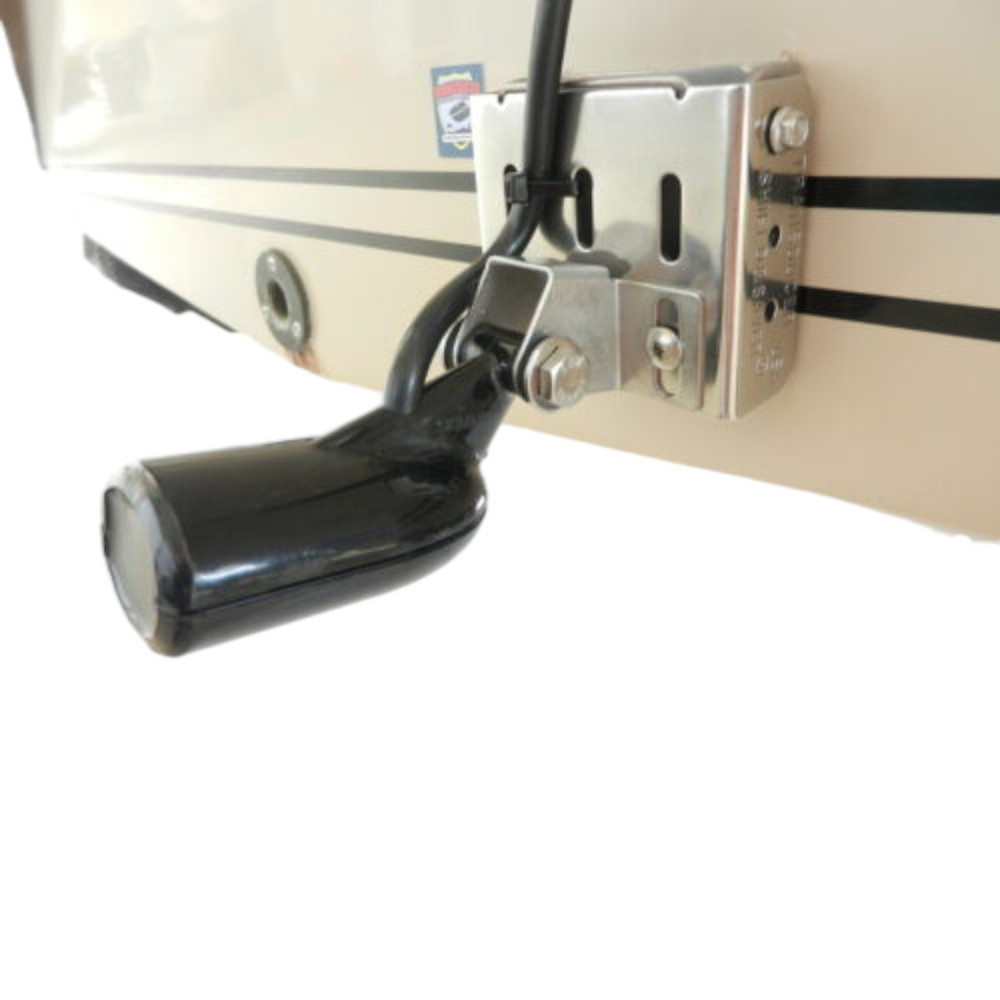

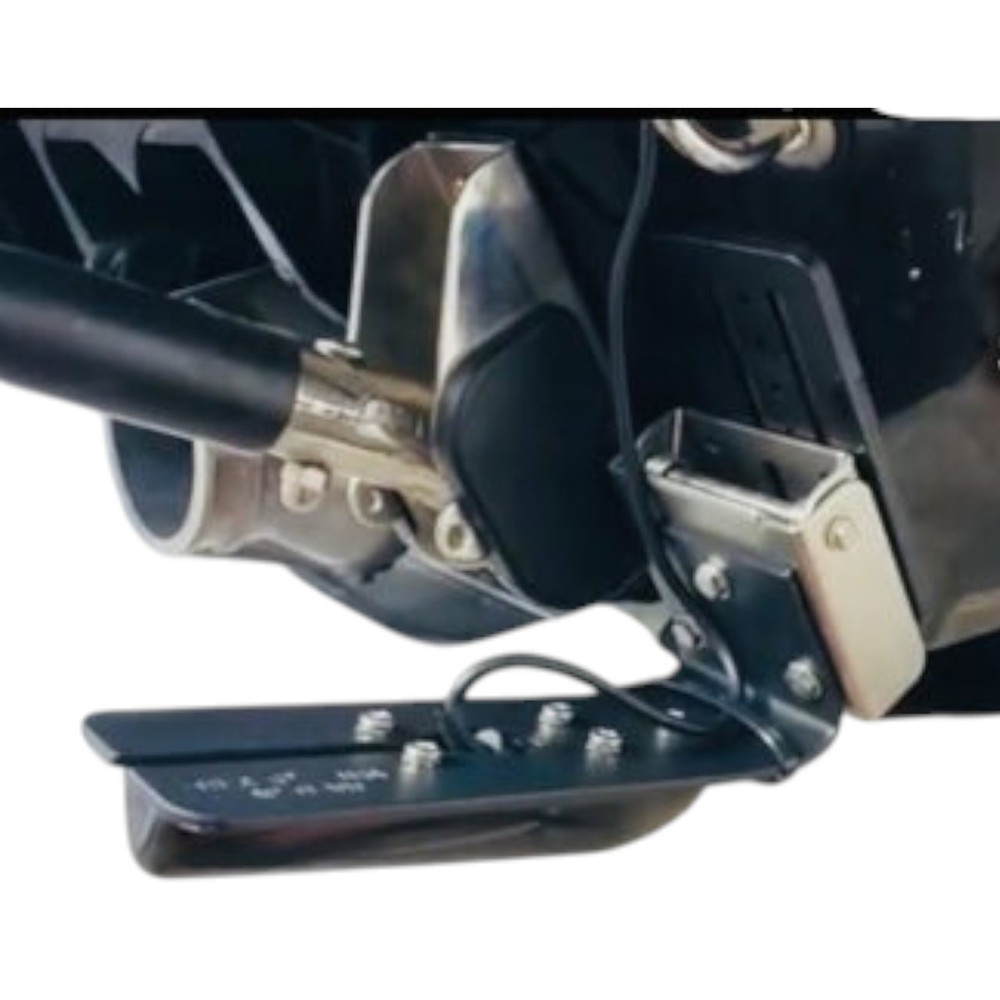

Unlike rigid transducer mounts that can transfer impact directly into the transducer or mounting bracket, the SBB-5 uses two heavy-duty torsion springs to absorb impacts. If the transducer contacts an underwater object, the bracket pivots backwards before automatically returning to its original operating position once the obstruction has been cleared.
This greatly reduces the chance of damaging expensive sonar equipment while helping protect the transducer arm, mounting hardware and transom.

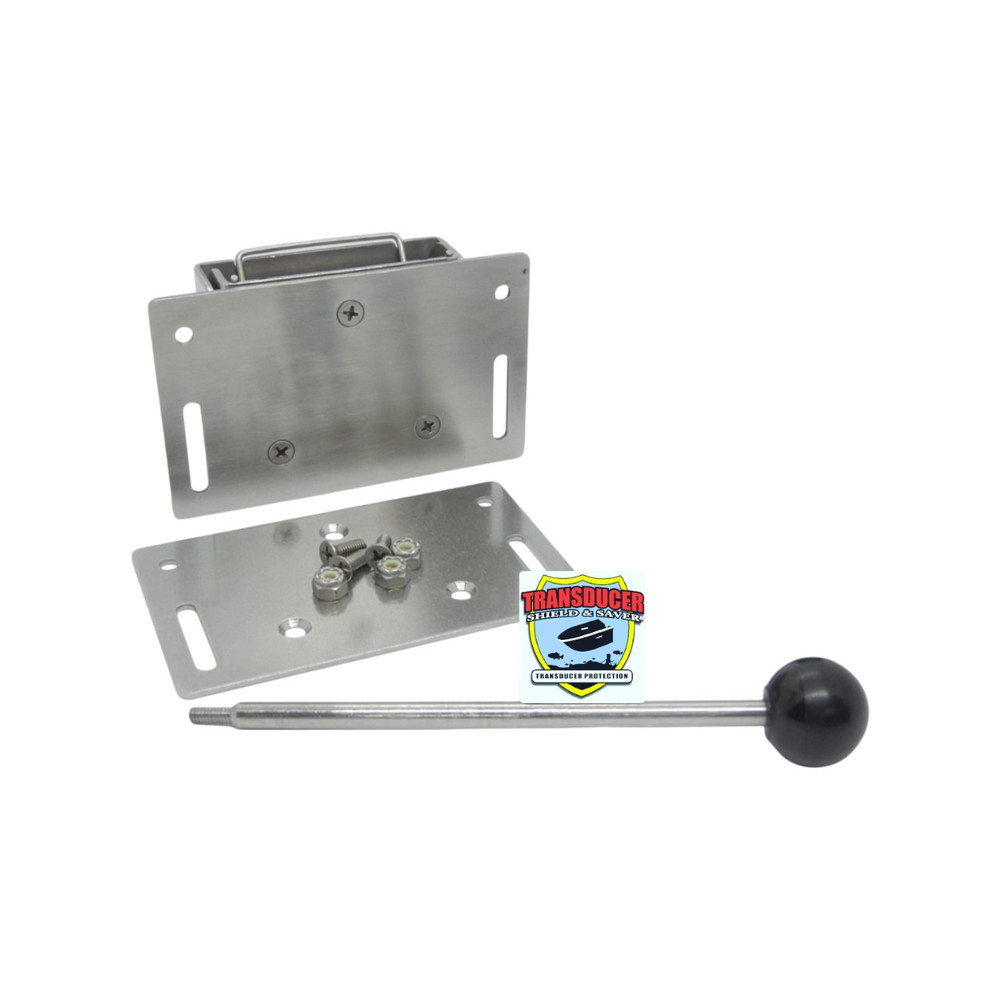

SBB-5 Combo Includes
- Stainless Steel Spring-Back Bracket with dual springs
- Stainless Steel Backing Plate
- Axle Assembling Tool
The included Stainless Steel Backing Plate allows the complete assembly to be built on the workbench before installation, making fitting significantly easier while eliminating the need to work underneath the boat during assembly.
The Axle Assembling Tool simplifies removal and reinstallation of the spring axle should servicing ever be required.
Technical Specifications
- Material: Marine-grade stainless steel

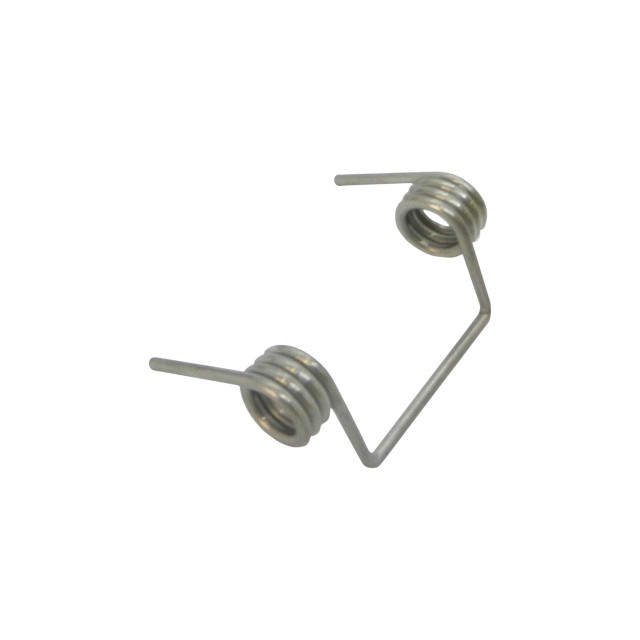

- Dual torsion spring design
- Overall dimensions: 3" (W) × 2.5" (H) × 1" (D)
- Includes stainless steel mounting hardware
- Designed and patented in the USA
Recommended Applications

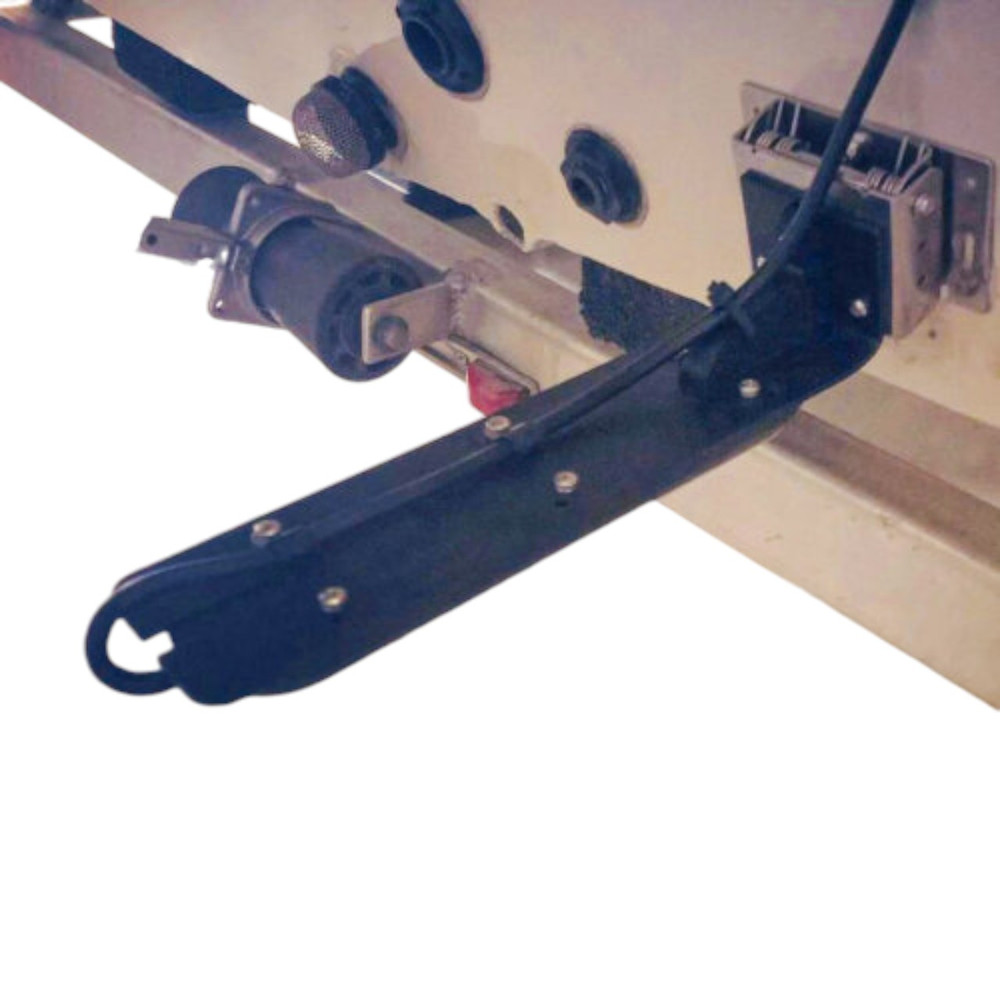

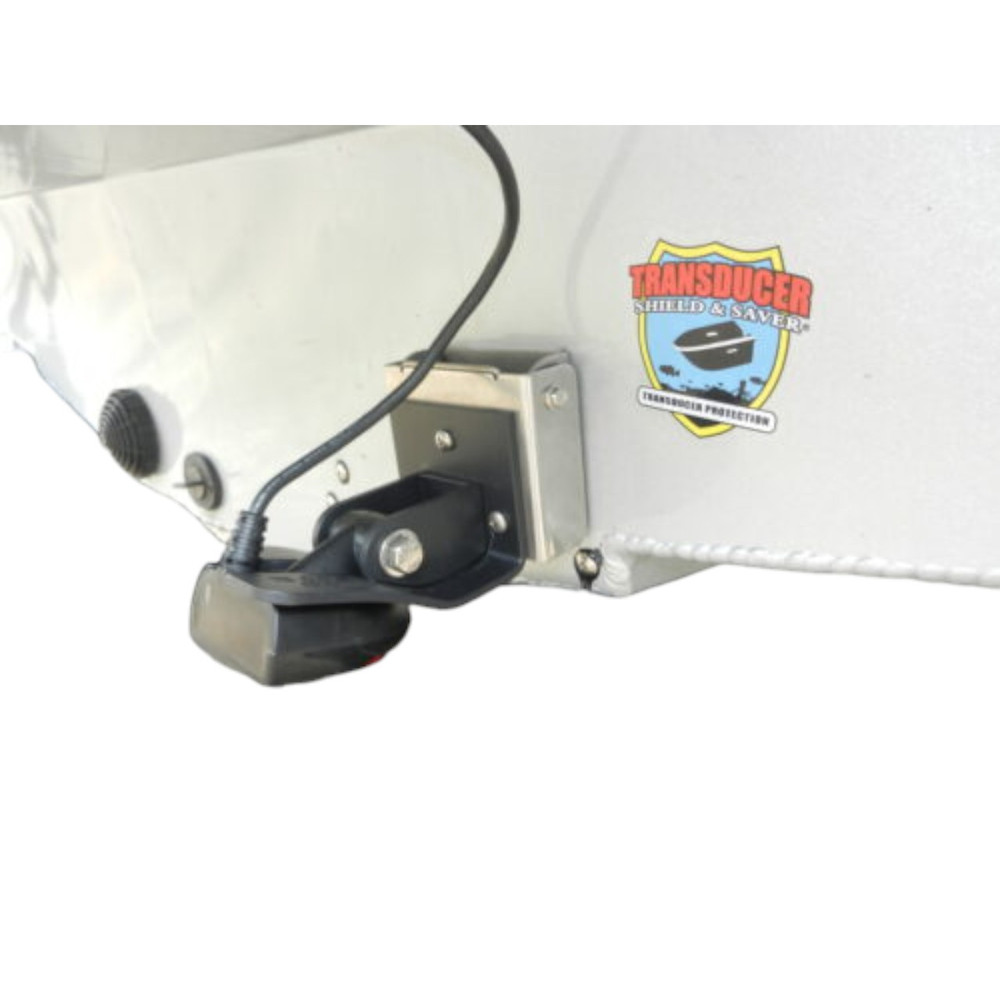

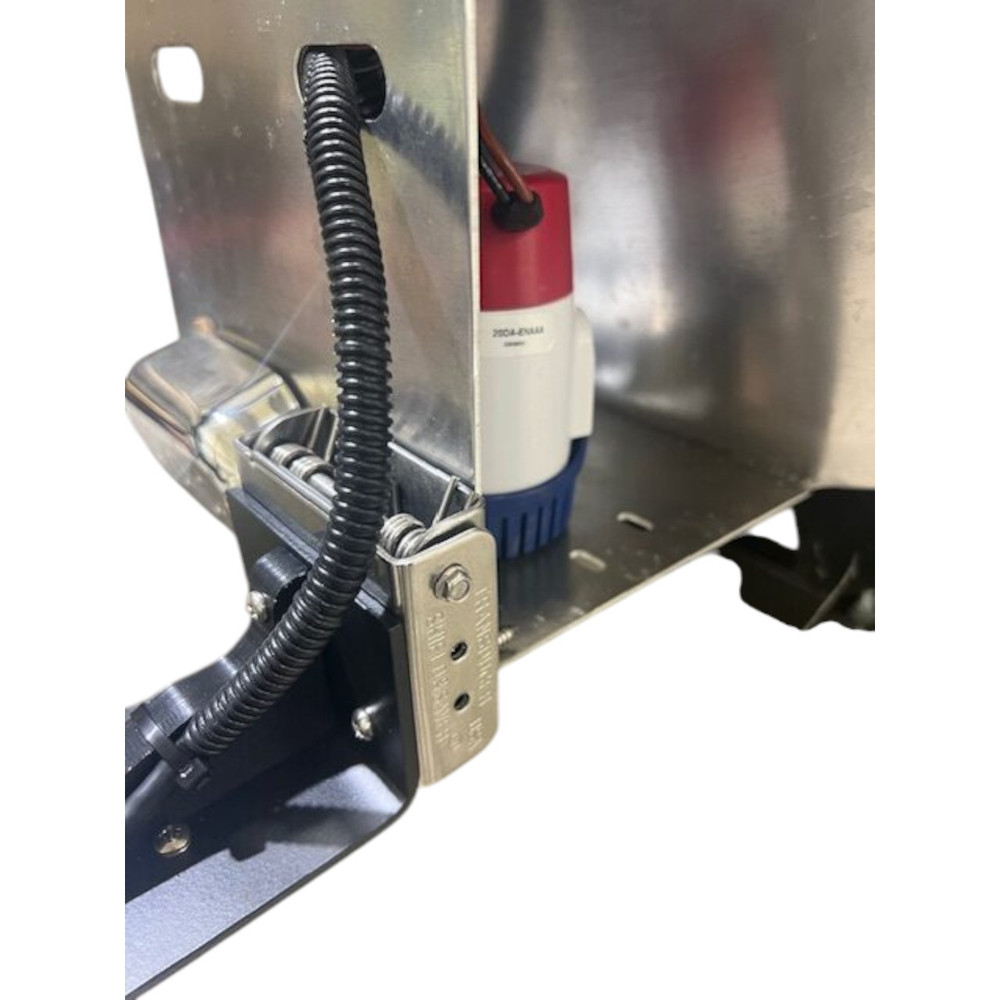

The SBB-5 is recommended for virtually any transom-mounted side imaging or forward-facing sonar installation where maximum protection is desired. It is especially recommended when using Transducer Shield & Saver Armor Plates, helping protect both the Armor Plate and the transducer from impact damage.
Why Choose Transducer Shield & Saver?
For over two decades, Transducer Shield & Saver has developed innovative mounting and protection systems for premium marine electronics. The patented SBB-5 remains one of the most effective impact protection systems available for modern sonar installations and is trusted by tournament anglers, guides and serious boat owners worldwide.
