Bob's Machine 6-10" Jack Plate L Bracket for Transducer Shield & Saver

icon Share icon Share
0 review Write a Review
Bob's Machine 6-10" Jack Plate L Bracket for Transducer Shield & Saver The Transducer Shield & Saver Bob's Machine L Bracket is purpose-built to mount a…
SKU:
$162.80
Ask an Expert Ask an Expert Ask an Expert

Bob's Machine 6-10" Jack Plate L Bracket for Transducer Shield & Saver

$162.80
Choose Options

Bob's Machine 6-10" Jack Plate L Bracket for Transducer Shield & Saver

$162.80
Product Details

Bob's Machine 6-10" Jack Plate L Bracket for Transducer Shield & Saver

The Transducer Shield & Saver Bob's Machine L Bracket is purpose-built to mount a compatible TSS Transducer Shield to the side of a Bob's Machine 6", 8" or 10" hydraulic jack plate. Manufactured from high-quality aluminium alloy and finished with a durable black powder coat, this direct-fit bracket positions your transducer at the correct operating angle while providing a strong and reliable mounting solution.

Designed specifically for Bob's Machine jack plates, the bracket includes stainless steel mounting hardware and is engineered to work with compatible Transducer Shield & Saver transducer shields.

Available Options

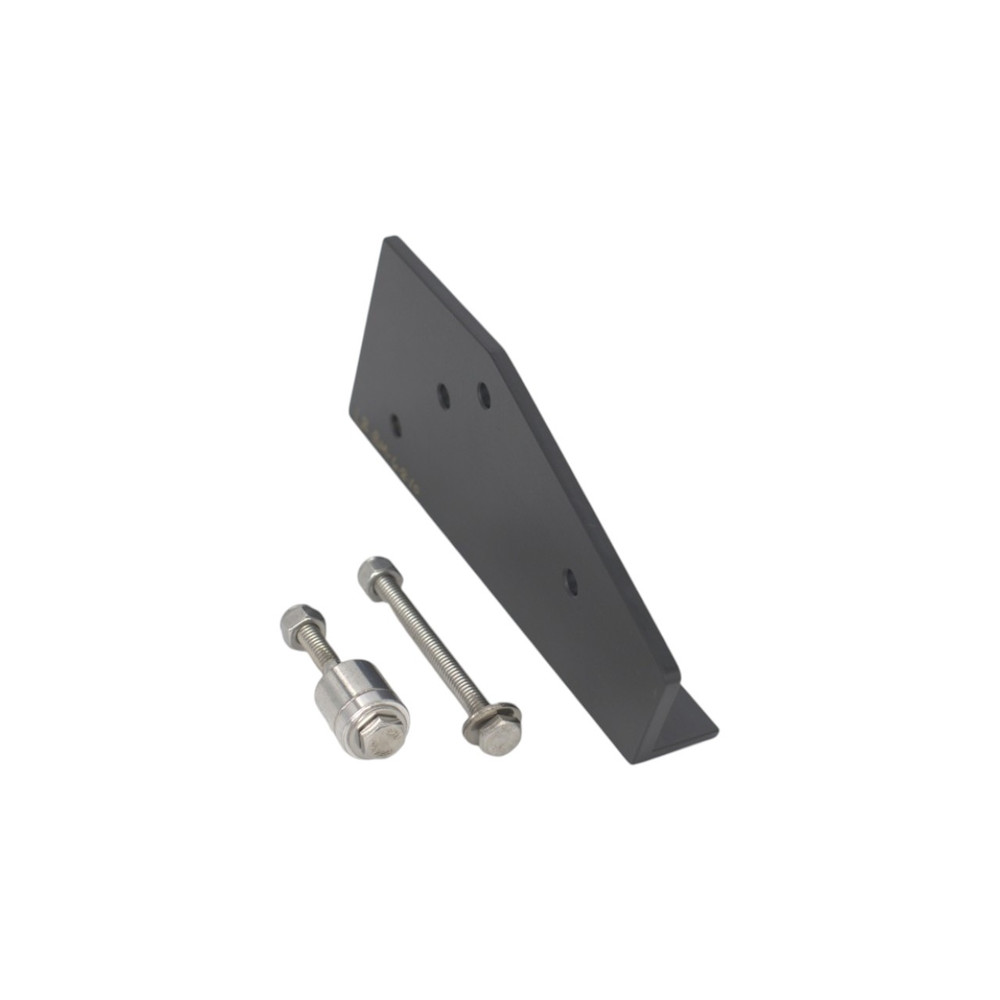

  • Starboard – LB-BM-6-8-10

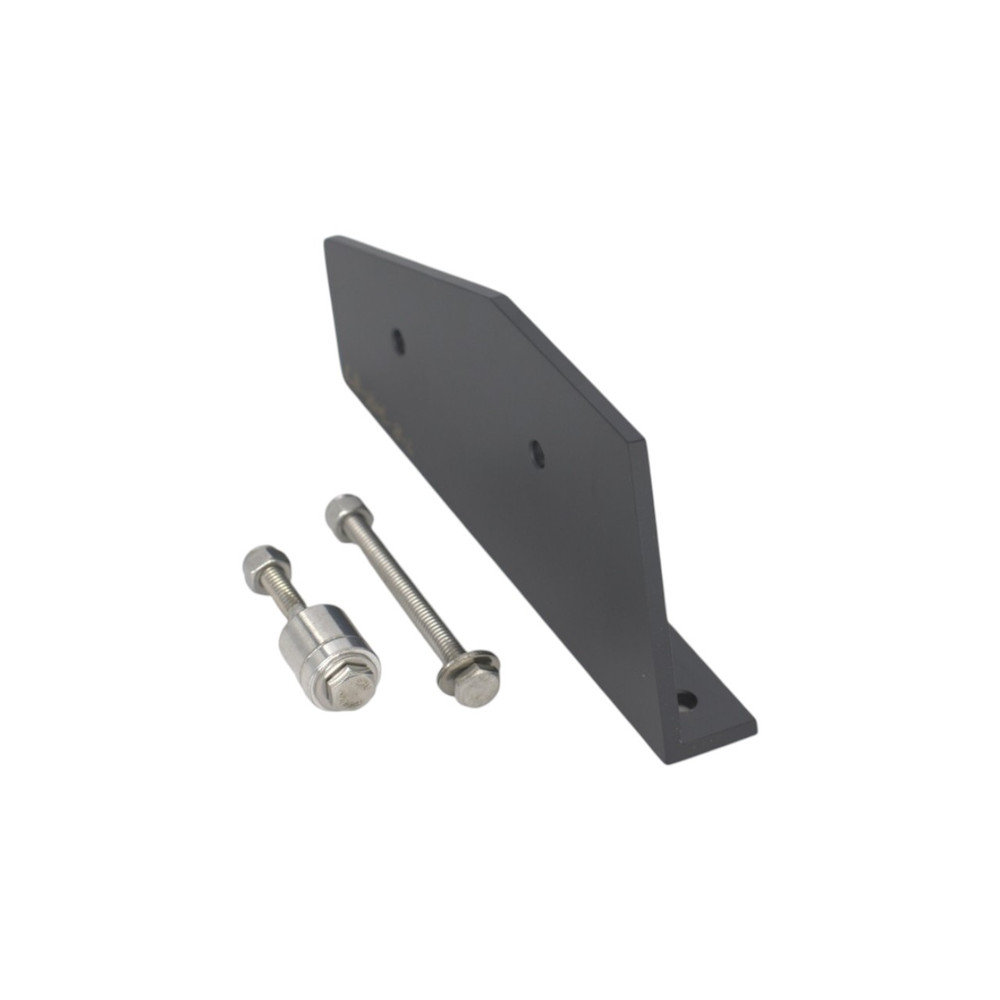

  • Port – LB-BM-6-8-10-L

Key Features

  • Designed specifically for Bob's Machine 6", 8" and 10" hydraulic jack plates
  • Available in Port and Starboard configurations
  • High-quality aluminium alloy construction
  • Durable black powder-coated finish
  • Includes stainless steel mounting hardware
  • Positions the transducer at the correct operating angle
  • Compatible with selected Transducer Shield & Saver shields
  • Proudly designed and built in the USA

Compatible Jack Plates

  • Bob's Machine 6" Hydraulic Jack Plate
  • Bob's Machine 8" Hydraulic Jack Plate
  • Bob's Machine 10" Hydraulic Jack Plate

This bracket has been engineered specifically for Bob's Machine hydraulic jack plates to provide a clean, secure installation with compatible TSS Transducer Shields.

Choose a Compatible Transducer Shield

A compatible Transducer Shield is required and sold separately. Choose the shield that matches your transducer:

Important Installation Notes

  • A compatible TSS Transducer Shield is required to mount your transducer.
  • Confirm your Bob's Machine jack plate size before ordering.
  • Larger transducers may require additional offset or spacer clearance to prevent contact with the hydraulic trim rod during operation.
  • Always check clearance through the full range of jack plate movement before use.
  • Some Skeeter boat models may require an extension between the L Bracket and Transducer Shield to position the transducer below the hull turning chines for optimal side-imaging performance.

Why Choose Transducer Shield & Saver?

Transducer Shield & Saver products are engineered to protect expensive sonar equipment while maintaining the correct transducer position for accurate sonar performance. Purpose-built mounting systems deliver a secure installation designed specifically for your jack plate and transducer combination.
