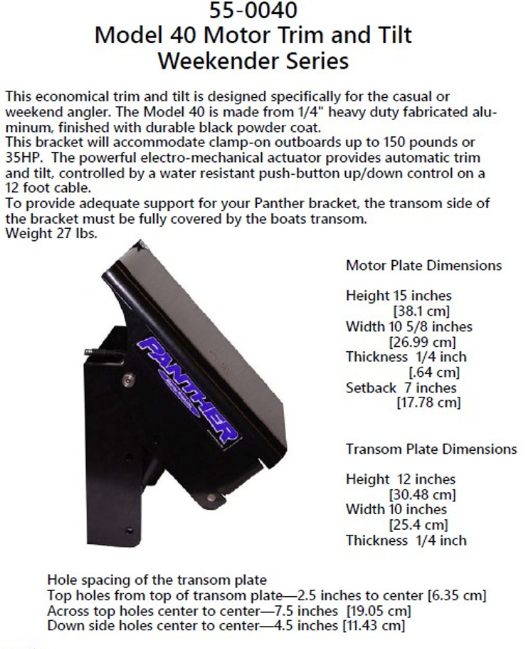

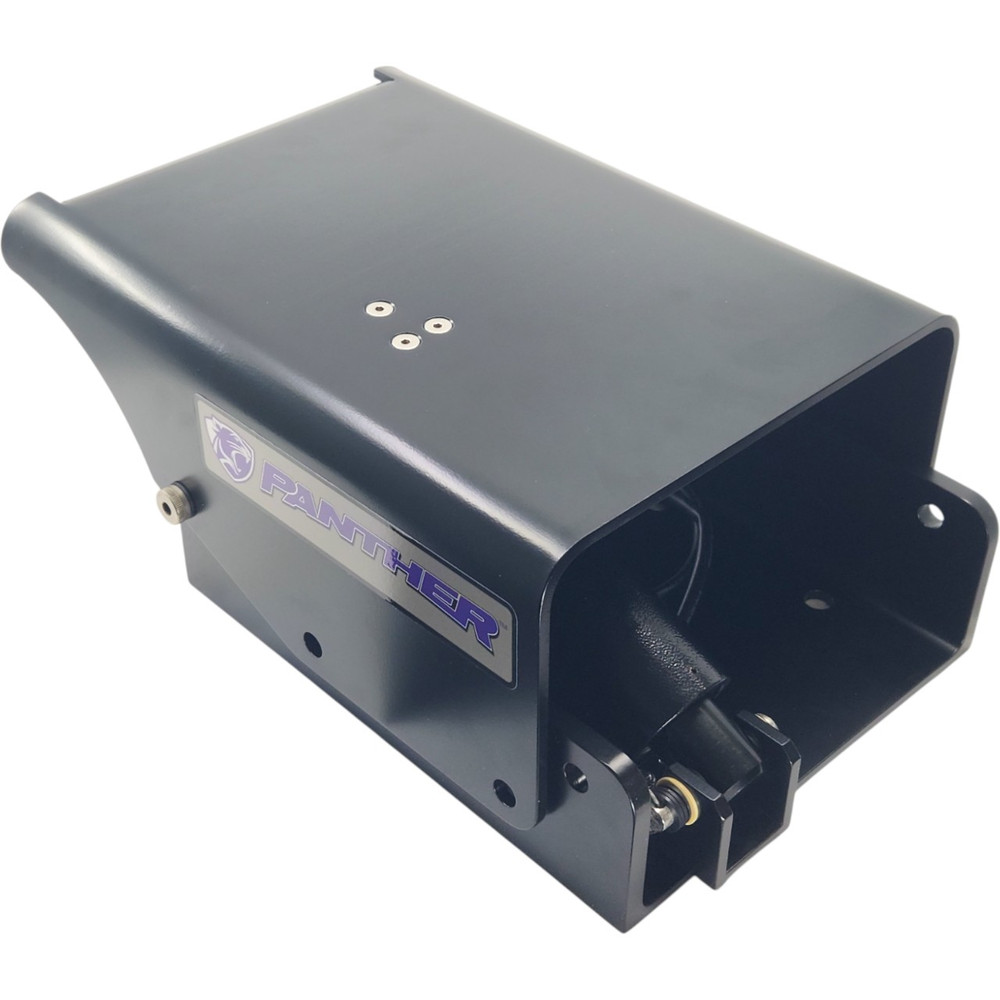

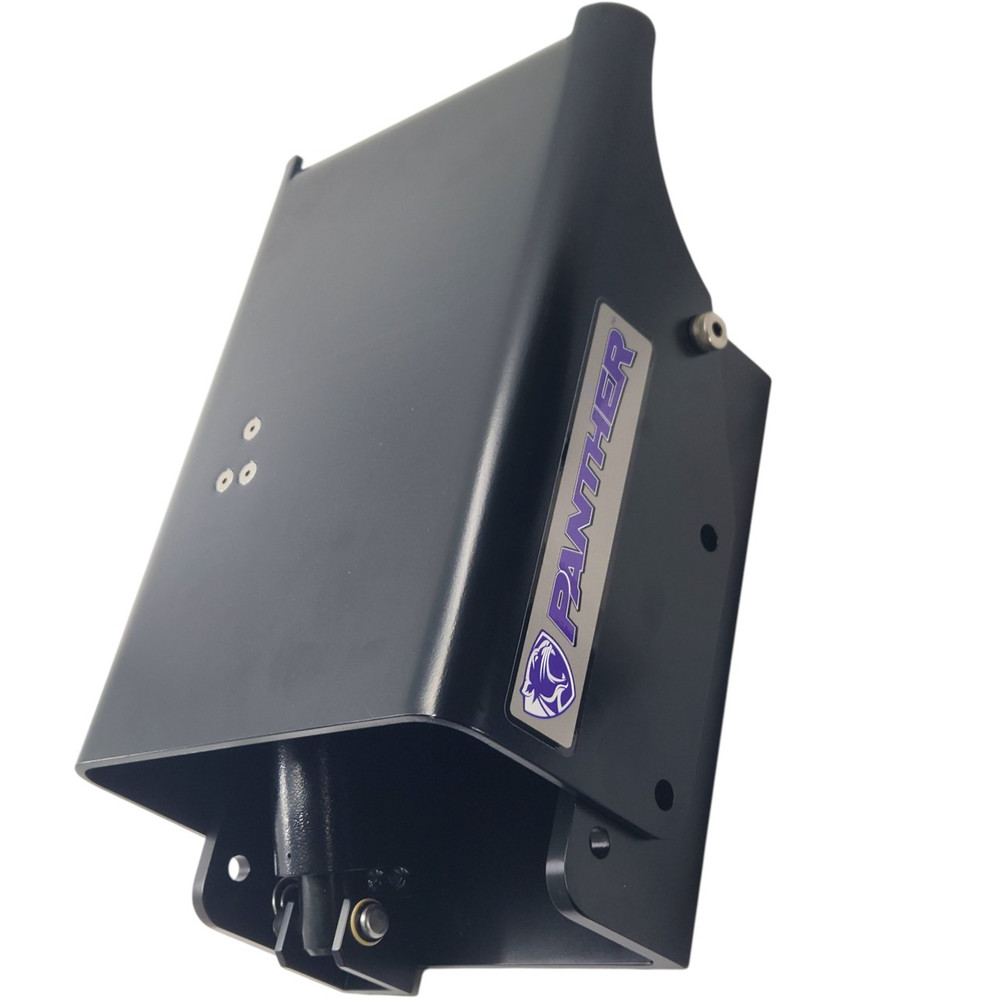

Panther Auxiliary Outboard Motor Bracket With Electic Trim & Tilt 7" Setback 35HP Max 55-0040
This economical trim and tilt bracket is designed specifically for the casual or weekend fisherman. The Model 40 is made from 1/4" heavy duty fabricated aluminium, finished with a durable black powder coat.
This bracket will accommodate 2 and 4 stroke clamp-on outboards up to 150 pounds or 35hp. The powerful electro-mechanical actuator provides automatic trim and tilt, controlled by a water resistant push-button up/down electric control on a 12 foot cable.
To provide adequate support for your Panther bracket, the transom side of the bracket must be fully covered by the boats transom.
Weight: 27lbs (12.5kgs)
Motor Plate Dimensions:
Height: 15" (38.1cm)
Width: 10 5/8" (26.99cm)
Thickness: 1/4" (0.64cm)
Setback: 7" (17.78cm)
Transom Plate Dimensions:
Height: 12" (30.48cm)
Width: 10" (25.4cm)
Thickness: 1/4"
Hole spacing of the transom plate
Top holes from top of transom plate - 2.5" to center (6.35cm)
Across top holes center to center - 7.5" (19.05cm)
Down side holes center to center - 4.5" (11.43cm)
Installation Manual for Model 40
