T Piece 1-1/2 M-F-F

$17.05
No reviews yet Write a Review
SKU:
TD453285

Tru Design

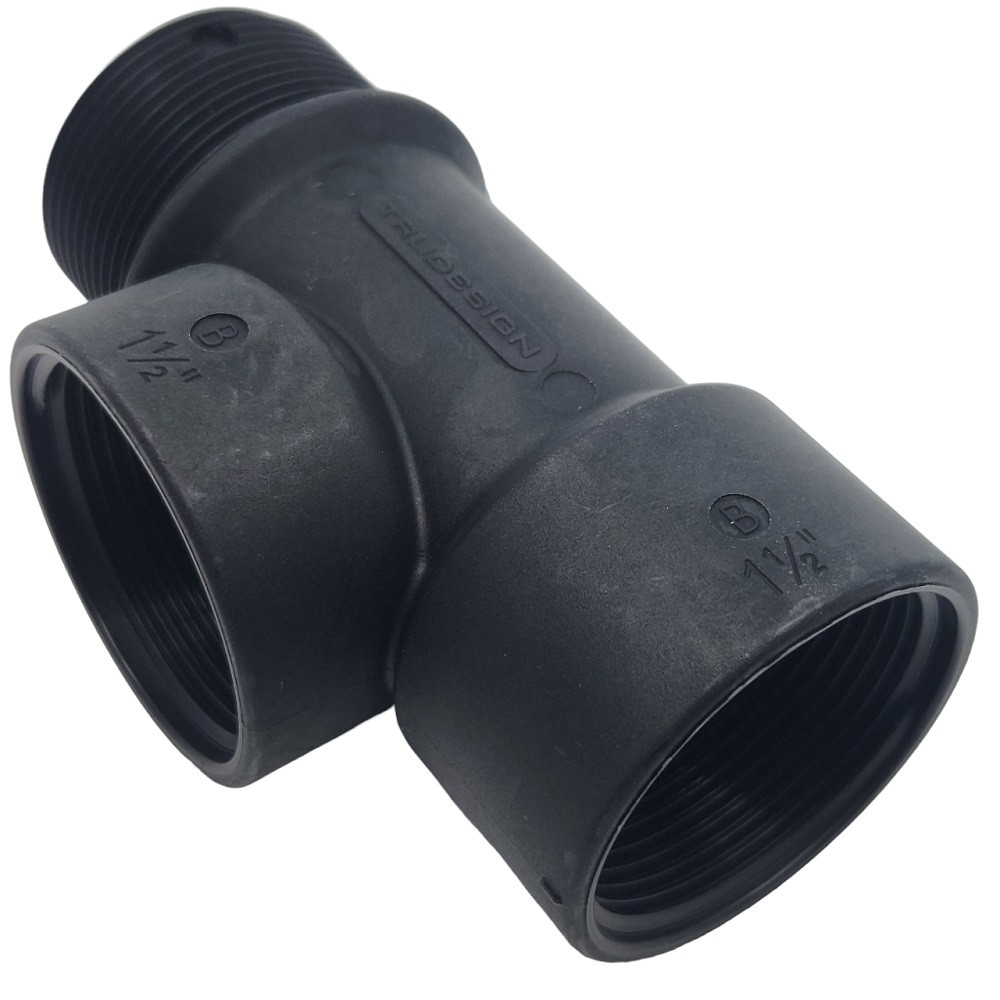

90893 - T-Piece Connector 1-1/2" BSP M-F-F

The 1-1/2" Threaded T-Piece features 2x Female threads and 1x Male thread enabling them to be joined together to create manifolds - useful for multiple hose connections to a single Ball Valve & Thru-hull fitting.

The centre female thread is shorter and designed for use with Aquavalve Tails (Straight, 90, and 120 degree) giving the option of tail sizes from 19mm up to 38mm. The Plug, or Threaded Connector can also be used in the centre connection.

NOTE: all Aquavalve Tails that are used with the T-Piece do not face-seal using the Red or Blue washer as they do when used in Aquavalves. Instead, use a suitable thread sealant or PTFE tape to seal threads.

The 1-1/2" Male and Female threads at each end are also parallel and are also designed to seal through the use of a suitable sealant or PTFE tape allowing any orientation of the two joined parts. Do not overtighten!
