SPX Johnson 10-13350-03 Viking Power 16 Diaphragm Pump 12 Volt

$350.00
No reviews yet Write a Review
SKU:
J-10-13350-03

SPX Johnson 10-13350-03 Viking Power 16 Diaphragm Pump 12 Volt

A modern, single-chamber, self-priming diaphragm pump that can be set up in several different pump/motor configurations. It is easy to install anywhere after the drain outlet in the wastewater system or as a bilge pump in any leisure craft – new or used.
The Viking Power 16 is self-priming up to a height of three meters. With its low pulse and muffled rubber bracket, this pump offers quiet operation. Specifically designed to pump waste water, with double check valves for improved pumping action, the Viking Power 16 has been built to last, and engineered for easy maintenance. When it comes time to replace the premium grade reinforced nitrile rubber diaphragm, you can put in a spare without even removing the pump from the system.
Its non-choke valves mean that no in-line filters are necessary. The pump can be run dry, and it can also handle a mixture of air and water without difficulty.

Features

  • Specially designed to pump waste water
  • Easy to install, even in tight spaces
  • Quiet operation
  • Easy, low-cost maintenance
  • High-impact fiberglass reinforced nylon body
  • Ball-bearing supported transmission
  • Non-choke valves - no filters required
  • Can be run dry and can pump air/water mixture
  • Robust single diaphragm
  • Includes 1" hose and ¾" hose ½" BSP KlickTite connectors.
  • 12V or 24V motor
  • Low power consumption
  • Complies with ISO15083 small craft bilge pump standards for vessels up to 12 m (39.4 feet)

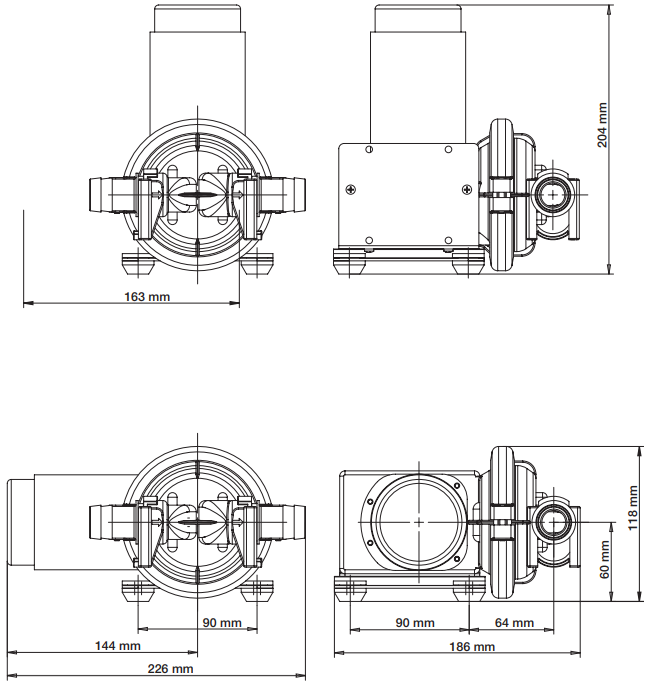

Specifications

  • Length: 186mm
  • Width: 235/181mm
  • Height: 118/204mm
  • Weight: 2.6kg
  • Motor: 2.3Amp @ 0.1 Bar
  • Body: Nylon, glass-fibre reinforced
  • Valves: Nitrile rubber
  • Diaphragm: Reinforced nitrile rubber
  • Capacity Open Flow: 16L/min (4.2gpm)
  • Max Lift: 3m (9.8ft)
