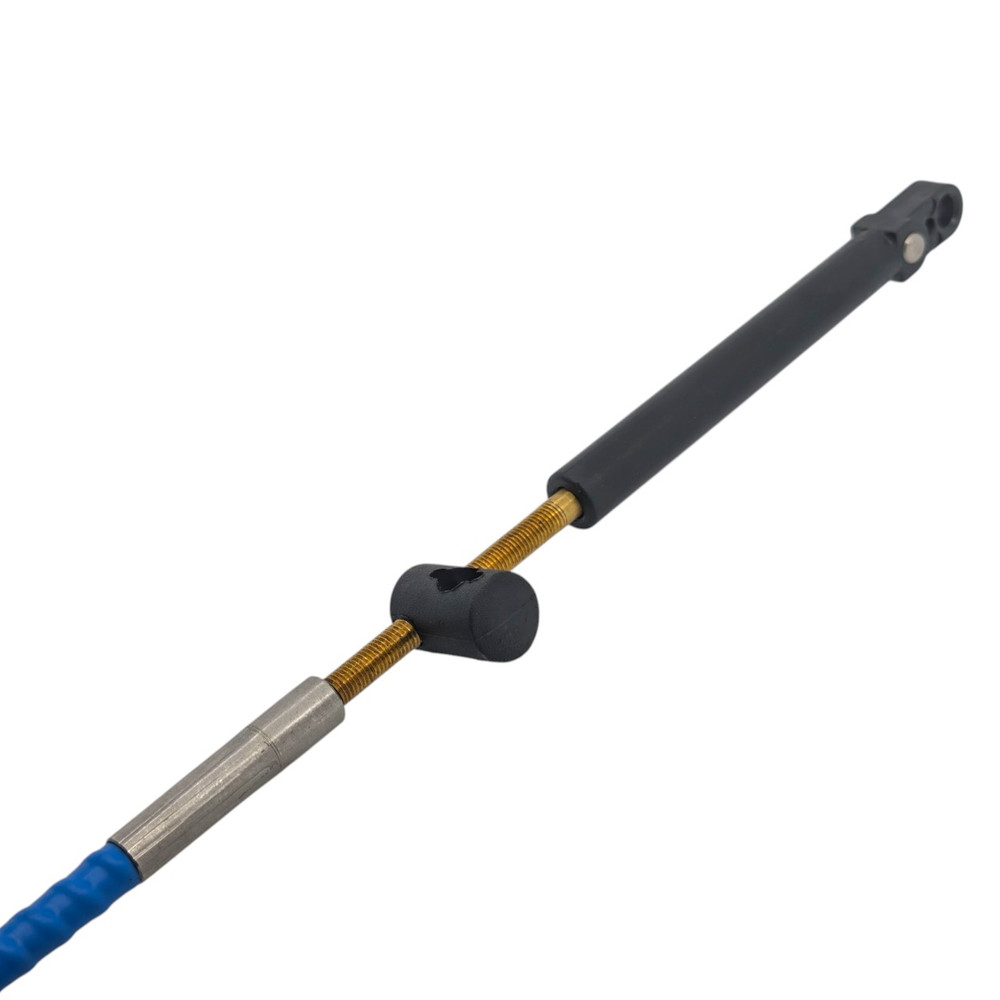

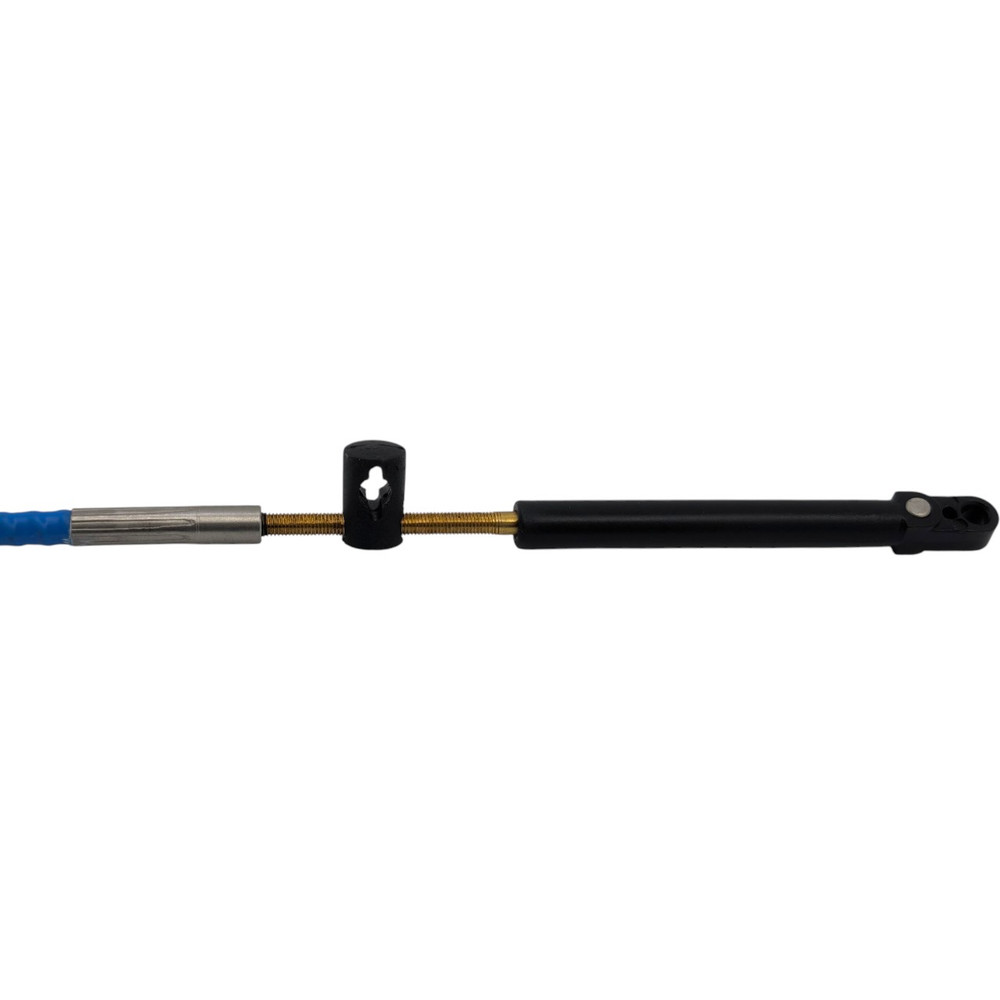

Multiflex - Mercury Gen 1 Edge Control Cables - MF-EEC-005-
Engine Control Cables are used for Shift and Throttle application. Different designs of Engine Control Cables are used depending on the engine type and installation.
Suitability:
- For Mercury® and Mercruiser® engines
- Compatible with Seastar Solutions® part number CCX179 and Ultraflex® part number MACH5
- Applications - Mercury® / Mercruiser® / Mariner® / Over 50
Edge Series Control Cable:
- Travel: 95 mm
- Conduit: 8.6 mm
- Inner: 2.75 (coated inner)
Features:
Special Edge Conduit
- Unique design of Conduit provides structural integrity and a tighter minimum bend radius.
Improved Efficiency
- Edge cables provide significantly greater efficiency due to use of low-friction materials and construction.
Minimal Backlash
- Edge cables are built allowing optimum gap between inner core and conduit, resulting in significantly minimal backlash.
Less Friction Wiper Seal
- The wiper seals are made from a polyurethane impregnated with lifetime lubricant to minimise operating friction.
Cable Bend Radius
- Edge Cable has a minimum bend radius of 4 inches. However in use keep the bend radius as large as possible and the degree of bend to a minimum for optimal performance.
- The above features translates into improved efficiency with reduced operator effort when EDGE cables are used.
Fact Sheet: What is EDGE cable technology
