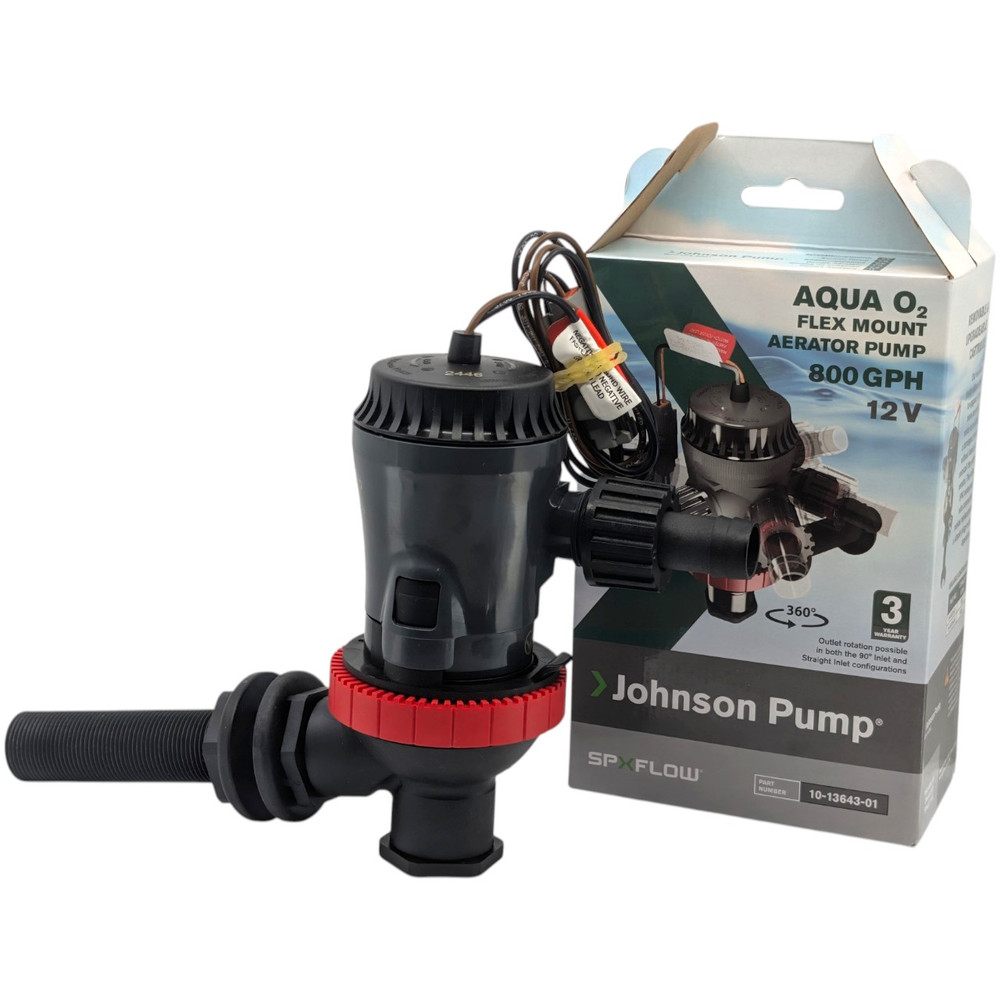

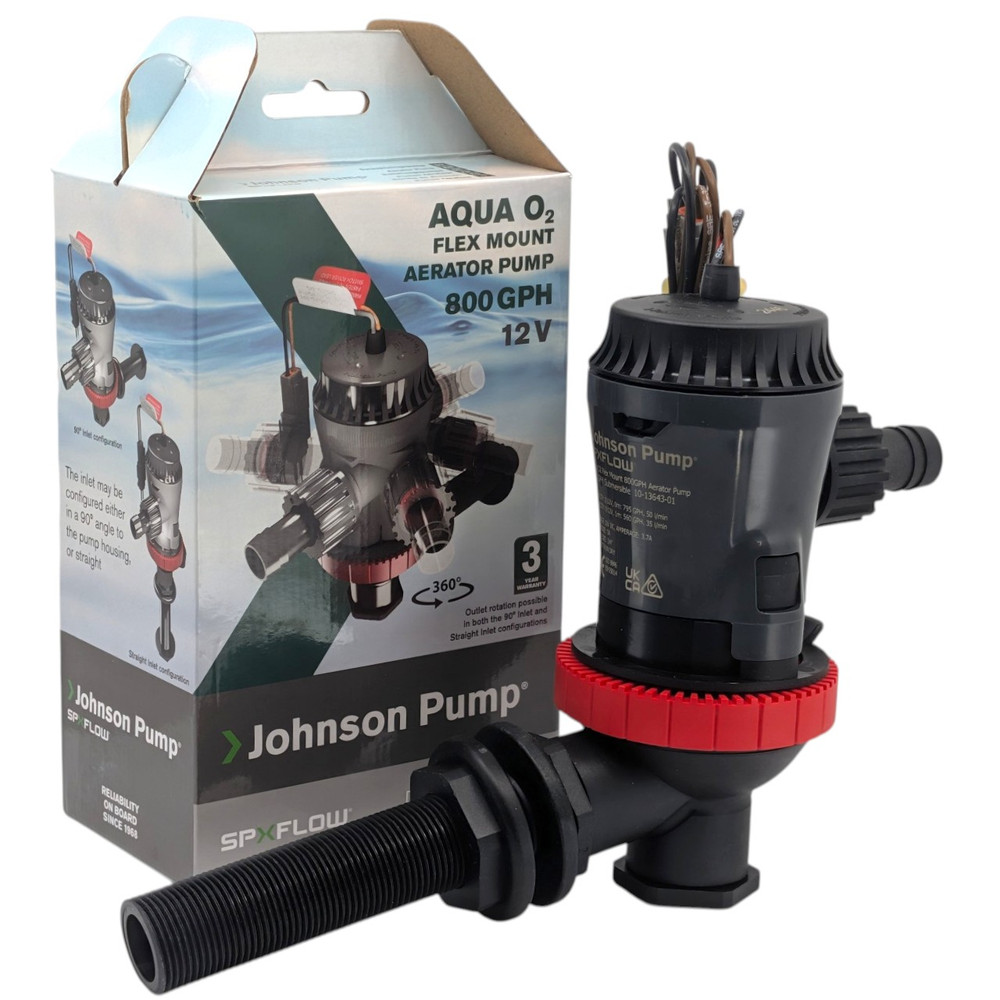

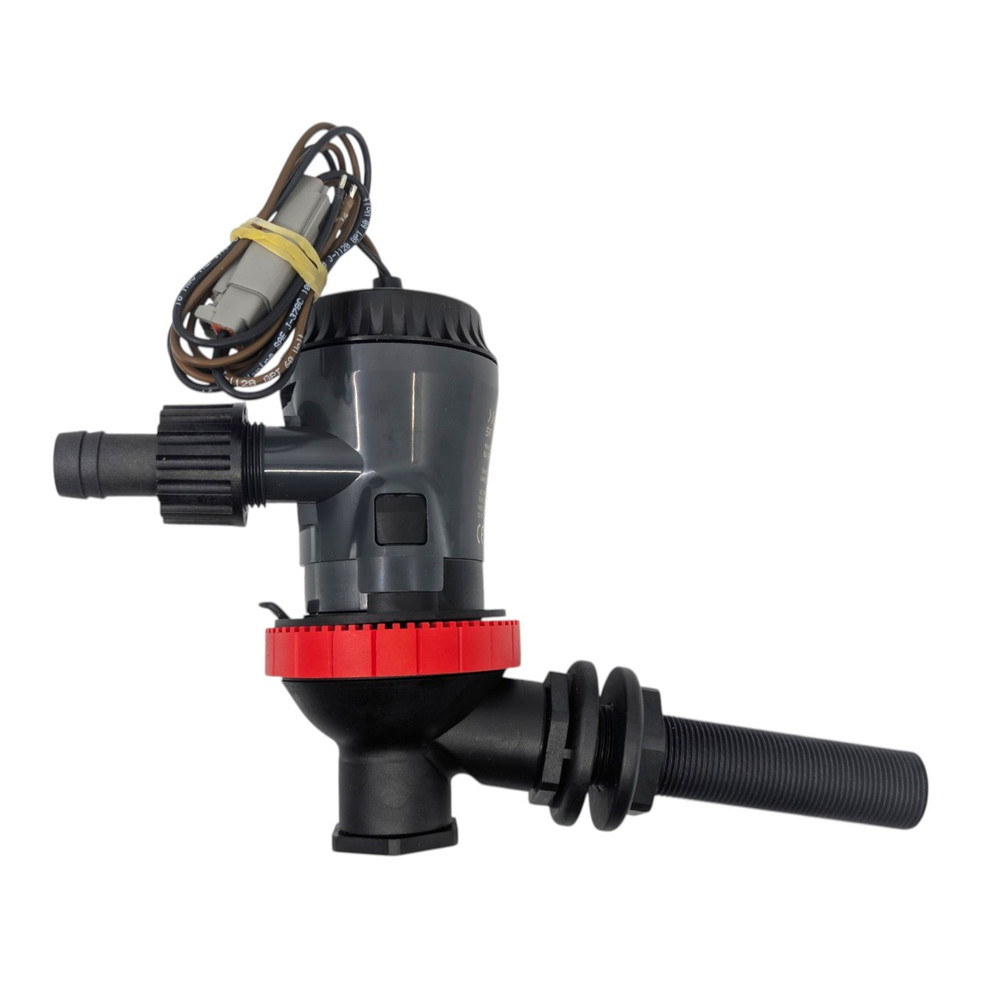

The genuine SPX Johnson 10-13643-01 Aqua O₂ Flex Mount aerator pump is a new generation 12V cartridge-style livewell and bait tank pump designed for reliable saltwater performance, easy servicing and flexible installation. With 800 GPH flow capacity, 360-degree mounting flexibility and a quick-change motor connection, this pump is ideal for livewell, baitwell and aeration systems where space is limited and service access matters.
This updated Aqua O₂ Flex Mount pump replaces older Johnson livewell pump models 32-2870 and 32-3870, combining two previous product options into one improved part number. The quick-change cartridge motor design allows fast motor replacement or servicing without cutting wires, removing hoses or disturbing the pump body once installed.
This Aqua O₂ Flex Mount aerator pump is compatible with Johnson Pump Marine automatic switching options including the AS888 automatic switch, electronic float switch and Ultima Switch. It also uses replacement motor cartridge 09-36336-06 for future servicing.
Suitable for marine livewell, bait tank and aerator pump applications requiring an 800 GPH 12V pump with 3/4" hose connections. This pump is designed as the updated replacement for Johnson 32-2870 and 32-3870 livewell pump models. Always confirm your existing pump capacity, voltage, hose size and installation layout before ordering.
What does the SPX Johnson 10-13643-01 replace?
The SPX Johnson 10-13643-01 Aqua O₂ Flex Mount aerator pump replaces older Johnson 32-2870 and 32-3870 livewell pump models.
What is the flow capacity of this aerator pump?
This model has an 800 GPH flow capacity.
Is this pump suitable for saltwater use?
Yes. The Aqua O₂ Flex Mount aerator pump is designed for demanding marine and saltwater livewell applications.
What voltage is this pump?
This is a 12V DC aerator pump.
What is the amp draw?
The pump draws 3.7 amps and uses a 5 amp fuse.
What size hose does this pump use?

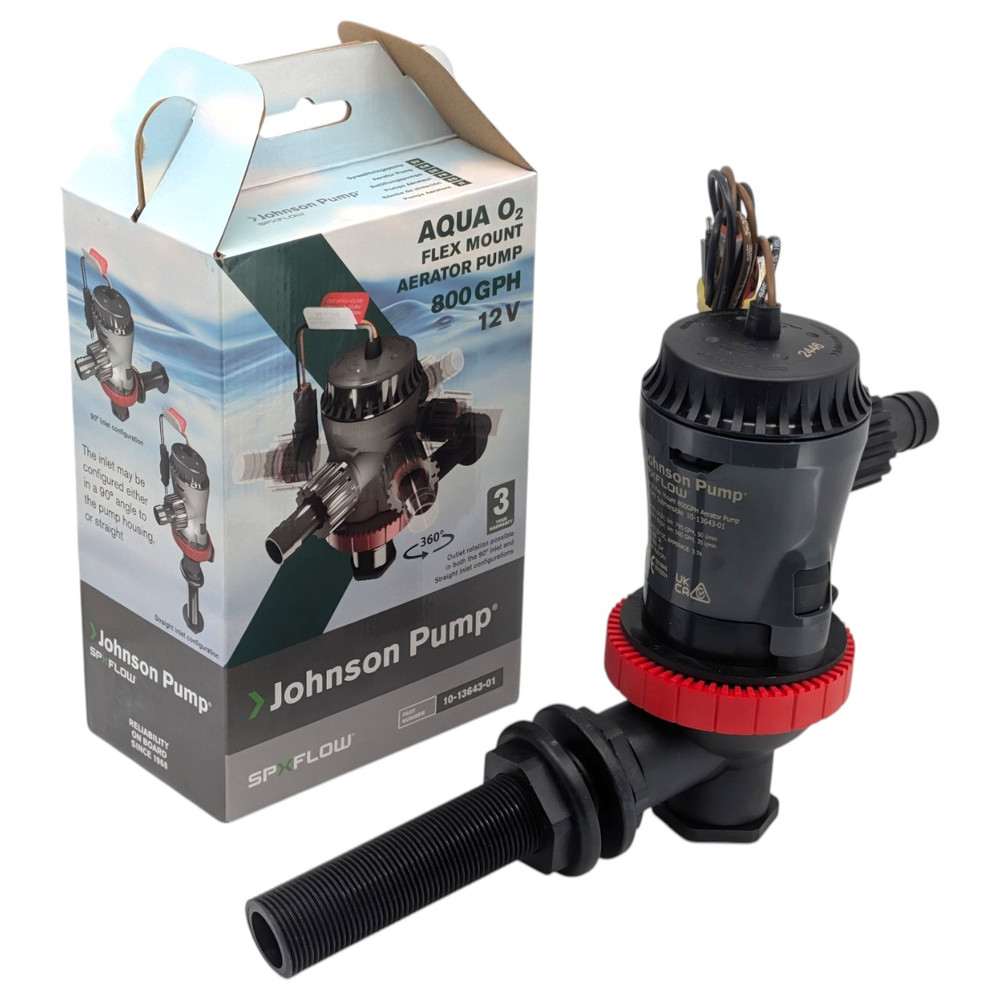

This pump uses 3/4" hose connections and includes Dura-Port discharge fittings.
Can the motor cartridge be changed without removing the pump body?

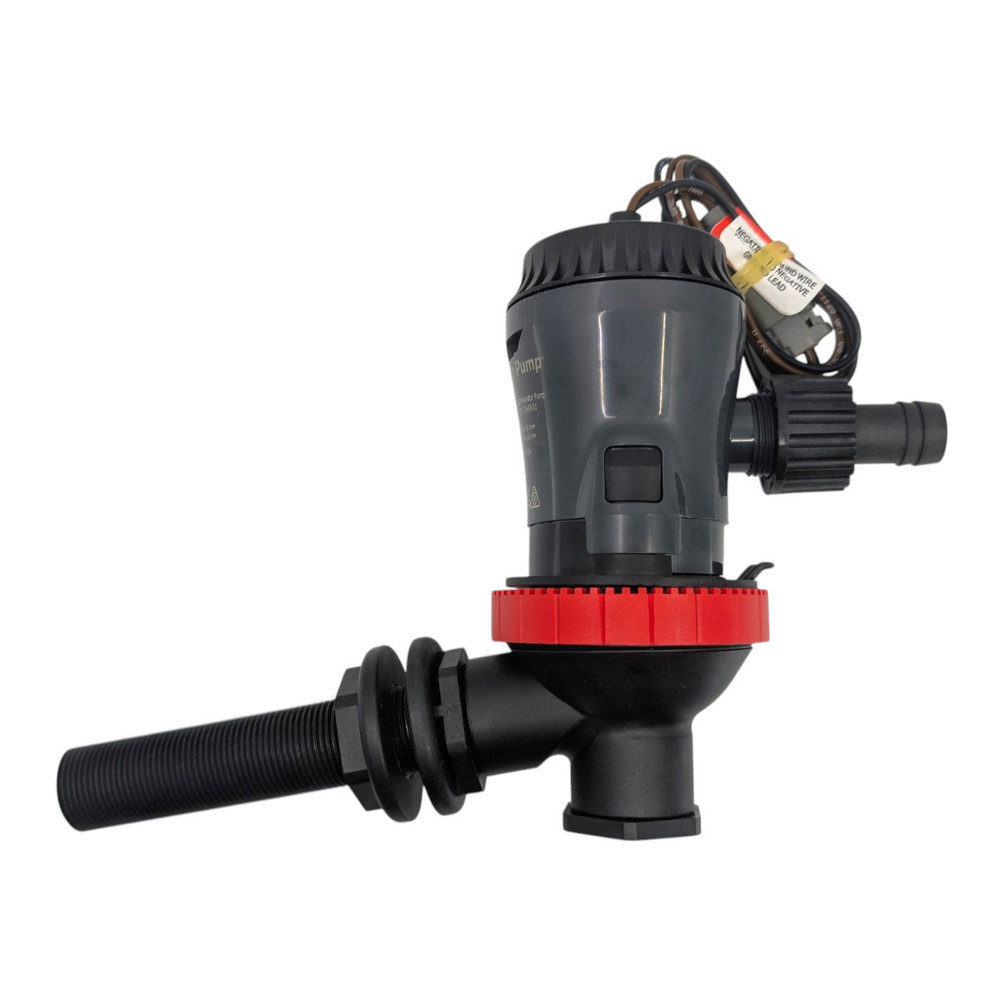

Yes. The quick-change cartridge motor design allows the motor and impeller cartridge to be serviced while the pump casing remains attached to the boat and hoses.
What replacement cartridge does this pump use?
The replacement cartridge for this pump is 09-36336-06.
Does this pump include fittings?

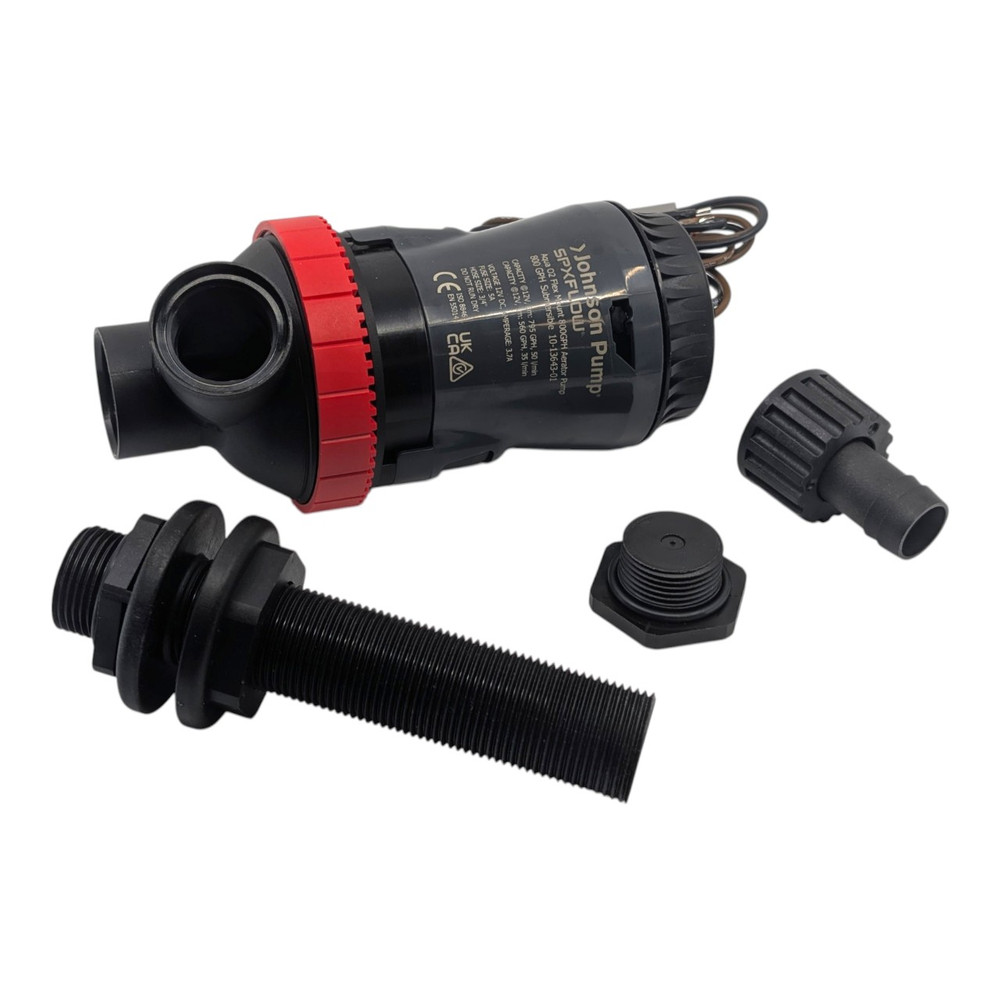

Yes. It includes a straight inlet shaft, a preassembled duraport fitting, a plug, O-ring & inlet shaft counter nut
The genuine SPX Johnson 10-13643-01 Aqua O₂ Flex Mount 800 GPH aerator pump is a strong upgrade for livewell and bait tank systems, combining improved serviceability, flexible installation and reliable Johnson Pump Marine performance in one updated replacement part.
