FFS BEAST Forward Facing Sonar Transom Mount System

0 review Write a Review
FFS BEAST Forward Facing Sonar Transom Mount System The Transducer Shield & Saver FFS BEAST is a premium transom-mounted system designed for anglers wanting…
SKU: BMS-FFS BEAST
$994.40

FFS BEAST Forward Facing Sonar Transom Mount System

$994.40

FFS BEAST Forward Facing Sonar Transom Mount System

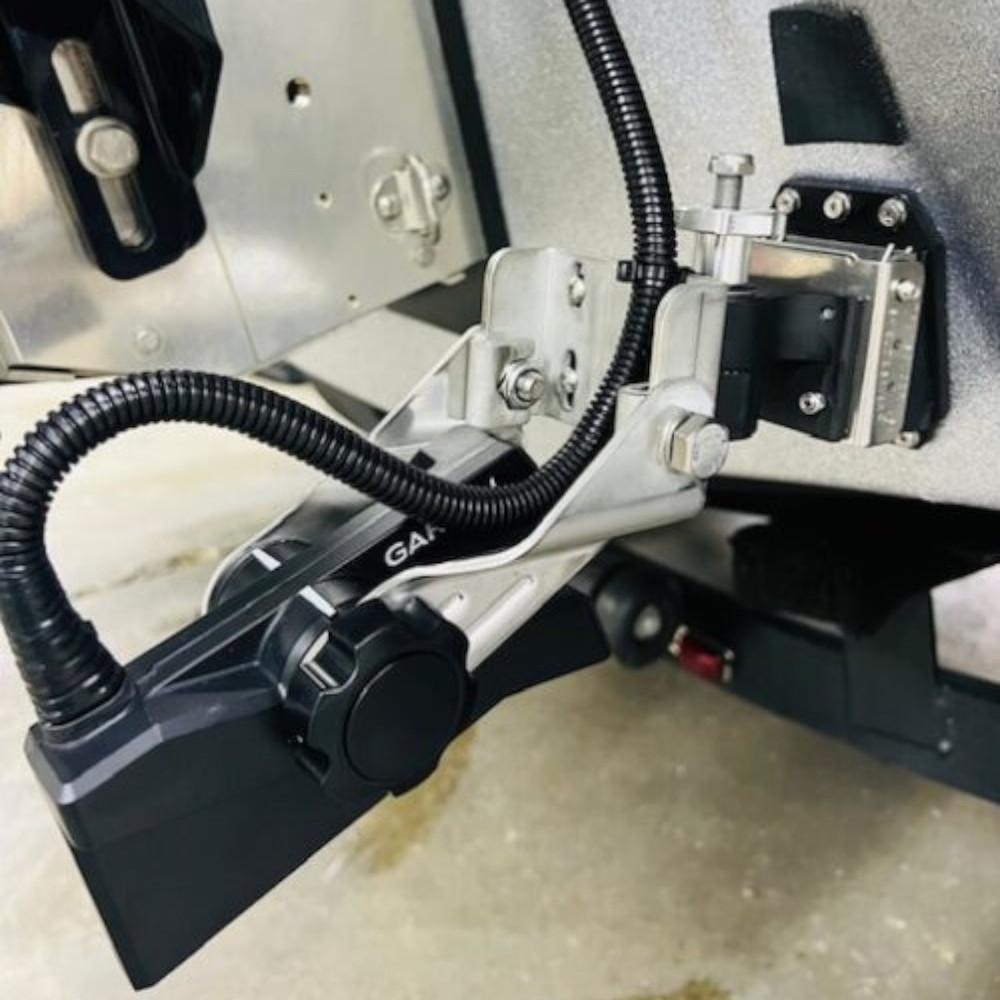

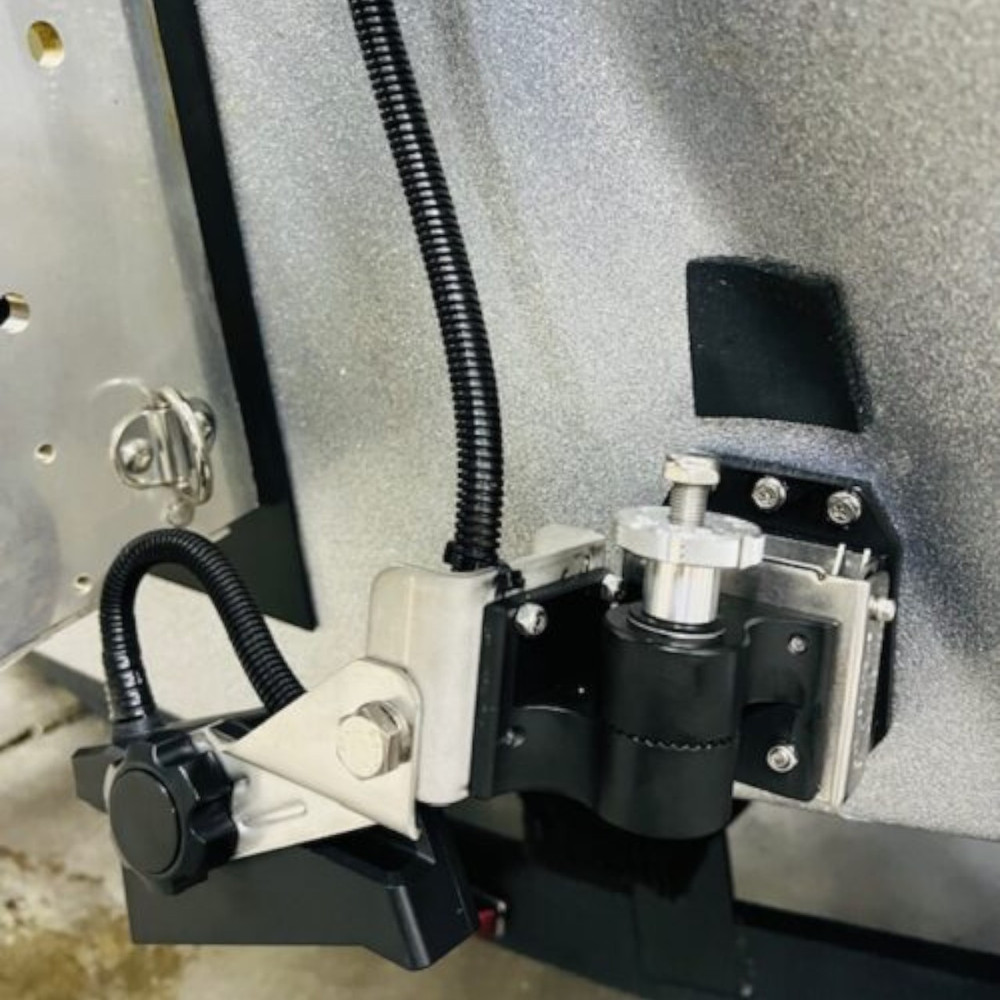

The Transducer Shield & Saver FFS BEAST is a premium transom-mounted system designed for anglers wanting to utilise Forward Facing Sonar (FFS) from the rear of the boat. Manufactured from high-quality aluminium alloy and finished with a durable black Cerakote coating, the FFS BEAST provides a rigid, adjustable mounting platform while protecting your valuable sonar transducer from underwater impacts.

Unlike fixed transom mounts, the FFS BEAST allows the transducer to rotate through a wide range of viewing angles, helping you scan structure, locate fish and monitor real-time fish movement while travelling or fishing from the console.

Key Features

  • Designed specifically for Forward Facing Sonar transducers
  • Heavy-duty aluminium alloy construction
  • Durable black Cerakote finish for maximum corrosion resistance
  • Adjustable viewing angle from approximately -90° to +90°
  • Interlocking teeth design locks the transducer securely in 10° increments
  • Integrated Spring Back Bracket protects the transducer from submerged objects
  • Pre-assembled for straightforward installation
  • Proudly designed and built in the USA

Pre-Assembled Components

Your FFS BEAST includes:

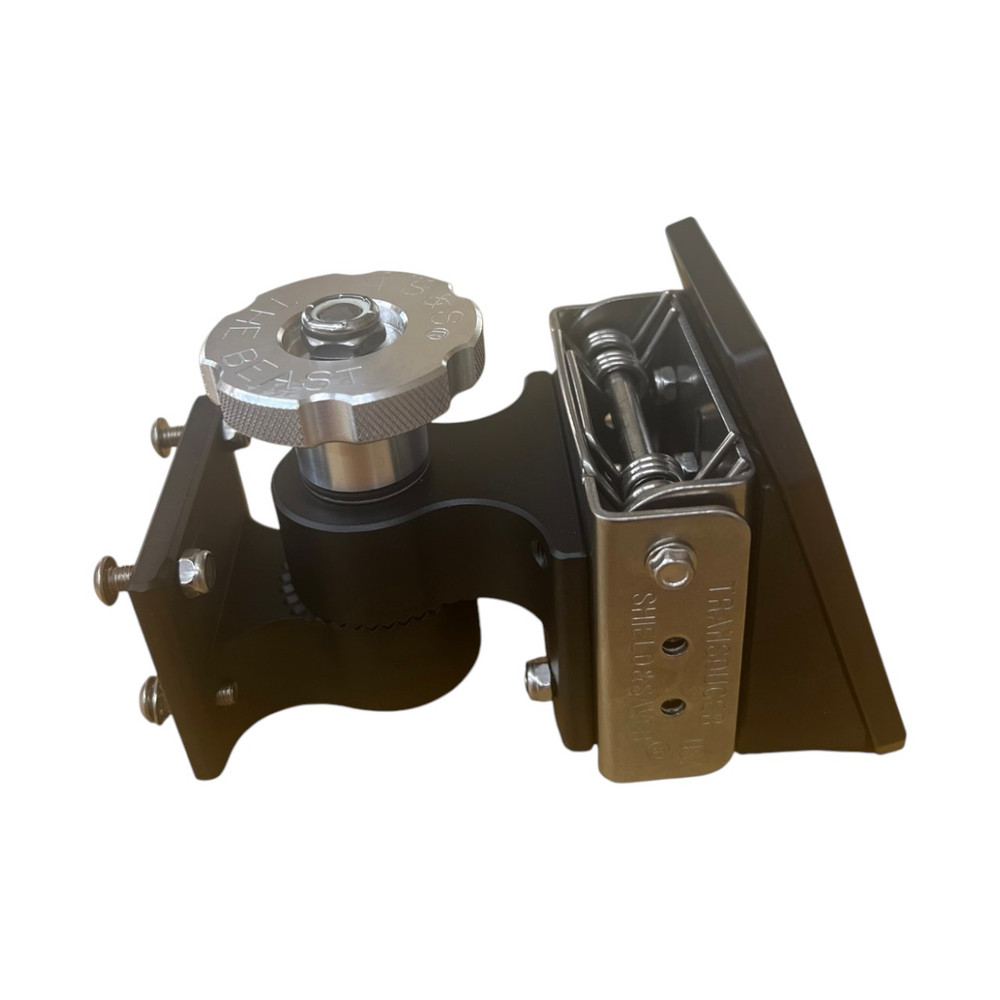

  • Heavy-duty aluminium backing plate with six pre-drilled mounting holes
  • Polyethylene mounting wedge
  • Stainless Steel Spring Back Bracket with dual torsion springs
  • Axle Assembling Tool
  • Stainless steel retaining fork for servicing the Spring Back Bracket

How the FFS BEAST Works

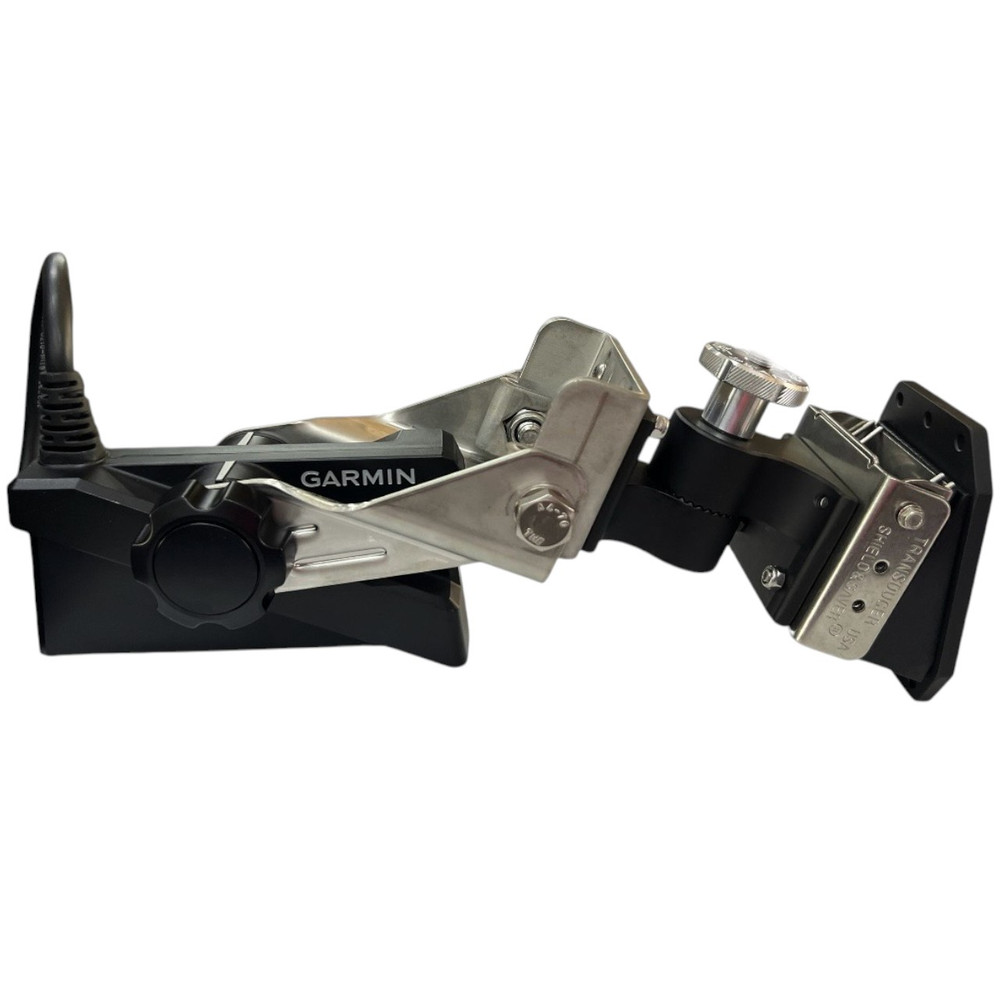

The precision interlocking adjustment mechanism allows you to rotate your Forward Facing Sonar transducer to the ideal scanning angle before locking it securely into position. Whether you're searching for fish while idling, scanning structure or fishing from the rear deck, the FFS BEAST provides exceptional stability with virtually no movement once tightened.

The integrated Spring Back Bracket automatically pivots the transducer upwards if it strikes submerged timber, rocks or other underwater obstacles before returning it to its original position. This helps reduce the risk of expensive transducer damage while fishing in shallow or unfamiliar water.

Installation Requirements

  • Approximately 12" of clearance from the jack plate is recommended to allow full transducer rotation.
  • Some boats, including certain Skeeter ZX and Ranger 500 Series models, may not provide sufficient clearance.
  • An original Garmin or Lowrance transom mounting bracket is required and is sold separately.

Compatible OEM Transom Brackets

The FFS BEAST is designed to work with the original manufacturer transom brackets.

Ideal Applications

  • Forward Facing Sonar fishing
  • Tournament bass boats
  • Freshwater impoundments
  • Estuary and inshore fishing
  • Console-mounted sonar installations

Why Choose Transducer Shield & Saver?

Transducer Shield & Saver continues to develop innovative mounting solutions that protect expensive sonar equipment while improving functionality on the water. The FFS BEAST combines transducer protection, exceptional rigidity and adjustable sonar positioning into one premium transom mounting system designed specifically for modern Forward Facing Sonar technology.

Why Buy from Boaters World?

Boaters World supplies premium marine spare parts, mounting systems and sonar accessories for Australian anglers. We stock genuine Transducer Shield & Saver products along with compatible Garmin and Lowrance mounting components, making it easy to build a complete Forward Facing Sonar installation.
