Arctic Steel 2.5" Bottom In Side Out Seawater Strainer WS-BISO-250
STRENGTH - RELIABILITY - PERFORMANCE
Arctic Steel recognise the importance of providing a strong flow of clean cooling water to marine engines, generators, HVAC, hydraulic and other onboard systems. The design is robust with the offset inlet/outlet offering extremely efficient flow, eliminating air locks and improving filtration.
Features:
- Electro-polished AISI Duplex 2005 Cast Stainless Steel
- BSP and NPT thread available
- 2.5" has vertical female inlet, side female outlet
- Secured by 5 S/S wing nuts for easy access
- Swing down S/S eye bolts eliminate need to remove nuts
- Solid electro-polished stainless steel lid or
- Clear 8mm poly carbonate lid option available
- Full height, high impact resistant ABS basket
- Optional 316 stainless steel basket is also available for finer screening
- Durable silicone gasket
- Cast anode connection point to combat electrolysis
- Side mounting bracket extension arm also available (316 S/S)
- Same body and lid size for both the 2" and 2.5"

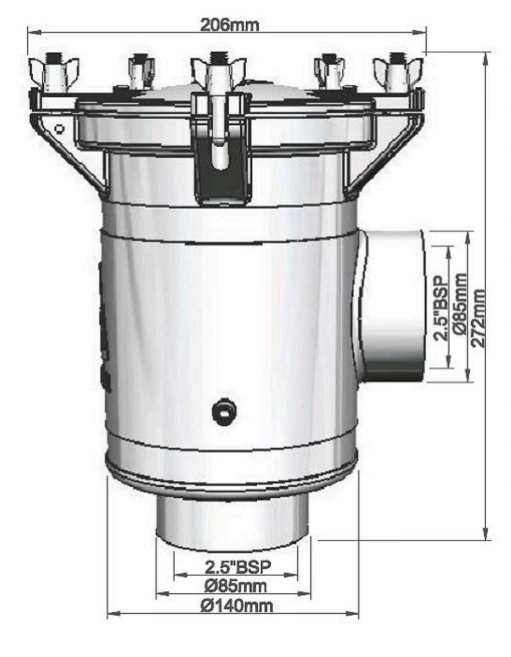

Dimensions:
