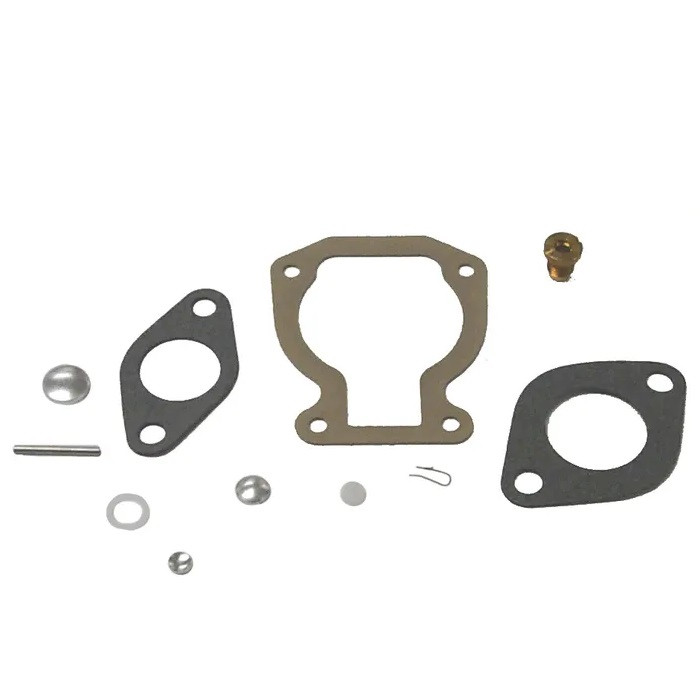

Aftermarket Johnson / Evinrude Outboard 439072 Carburetor Kit
The Sierra 18-7223 Carburetor Kit contains the gaskets and service components required when rebuilding the applicable carburettor in Johnson / Evinrude applications. It replaces Johnson / Evinrude 439072.
Technical Specifications
- Brand: Sierra Marine
- Sierra Part Number: 18-7223
- Product Type: Carburetor Kit
- Application: Johnson / Evinrude Outboard
Kit Contents
- High & Low Speed Needle Packing - Sierra 18-7106 (Johnson / Evinrude 307583)
- Needle & Seat - Sierra 18-7093 (Johnson / Evinrude 378895 / 396521 / 678882) - 3R models only
- Needle & Seat - Sierra 18-7094 (Johnson / Evinrude 379159 / 379313 / 382889 / 396522) - 4RE/4RL models only
- Float Bowl Gasket - Sierra 18-2908 (Johnson / Evinrude 331499 / 338878) - 4RE/4RL models only
- Hinge Pin, Float Arm - Johnson / Evinrude 0302661
- Gasket - Johnson / Evinrude 0301996
- Spring Clip - Johnson / Evinrude 0336842
- Gasket - Johnson / Evinrude 0338877 - 3R models only
- Gasket - Johnson / Evinrude 0338878
- Washer, Packing - Johnson / Evinrude 0306027
- O-Ring, Valve - Johnson / Evinrude 0333428 - 3R models only
- Roll Pin, Shut-Off Valve - Johnson / Evinrude 0325762 - 3R models only
- Gasket - Johnson / Evinrude 0323452
Cross References & Alternative Products
- EMP: 1300-01427
- GLM: 40550
- Johnson / Evinrude: 386698
- Johnson / Evinrude: 391305
- Johnson / Evinrude: 391937
- Johnson / Evinrude: 398452
- Johnson / Evinrude: 398453
- Johnson / Evinrude: 439072
- Mallory: 9-37101
Need help with fitment? Contact us with your engine model and serial number and we'll help check suitability.
Frequently Asked Questions
What is Sierra 18-7223?
Sierra 18-7223 is an aftermarket carburetor kit for Johnson / Evinrude Outboard applications.
Which part numbers cross-reference Sierra 18-7223?
This listing cross-references EMP 1300-01427, GLM 40550, Johnson / Evinrude 386698 and Johnson / Evinrude 391305. See the Cross References & Alternative Products section above for linked alternatives where available.
How can I check whether Sierra 18-7223 fits my Johnson / Evinrude Outboard application?
Contact us with your engine model and serial number and we'll help check suitability.
