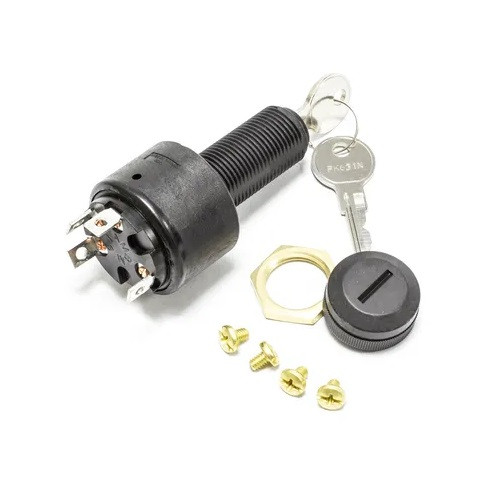

Key Switch 4 Position Magneto - SMP39730
Back Up Nut: Brass
Face Nut: Knurled Black Plastic with Rubber Cap
Hole Size: 7/8"
Length: Short: 5/8" maximum panel thickness
Material: Marine grade glass-filled Polyester
Rated Accessory: 15 Amp @ 12v DC
Rated Ignition: 15 Amp @ 12v DC
Rated Solenoid: 30 Amp @ 12 VDC
Terminal Type: 6 Tinned Brass Screw Terminals
Switch Positions: Acc - Off - Run - Start
Type: 4 Position Magneto
For Outboard engines without choke circuit
Maximum corrosion protection - eliminates oxidation
Inner seal between cylinder lock and contact plate
Non-conductive housing eliminates potential shorts
Interchange:
Seasense - 50031154
Valmar - 31152
- mfg_code:
- MP39730
