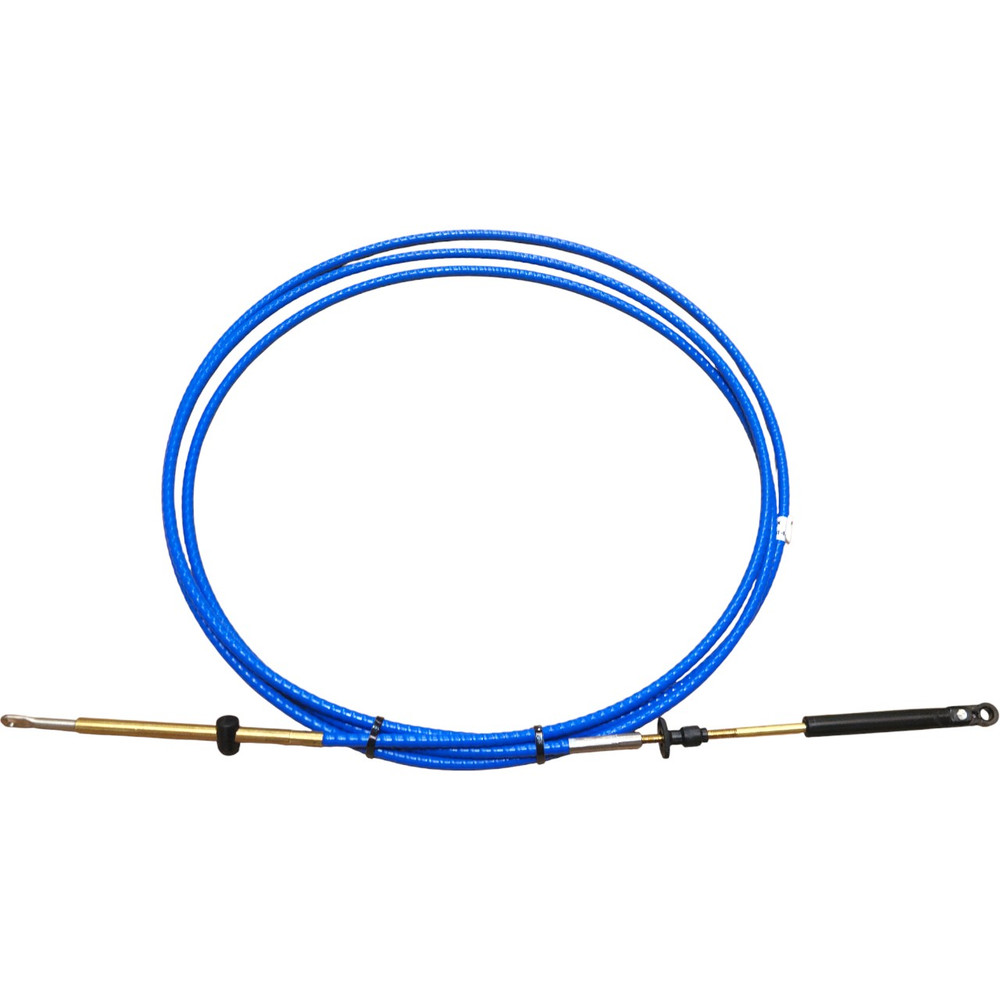

Multiflex - BRP Edge Control Cables - MF-EEC-014-XX
Engine Control Cables are used for Shift and Throttle application. Different designs of Engine Control Cables are used depending on the engine type and installation.
Suitability:
- OMC \ Evinrude \ BRP engines manufactured post 1979
- Compatible with Seastar Solutions part number CCX205 and Ultraflex part number MACH14
- Applications - Pre 1979 OMC / Evinrude® Johnson
Edge Series Control Cable:
- Travel: 80 mm
- Conduit: 8.6 mm
- Inner: 2.7 mm (coated inner)
- Flexible core
Features:
Special Edge Conduit
- Unique design of Conduit provides structural integrity and a tighter minimum bend radius.
Improved Efficiency
- Edge cables provide significantly greater efficiency due to use of low-friction materials and construction.
Minimal Backlash
- Edge cables are built allowing optimum gap between inner core and conduit, resulting in significantly minimal backlash.
Less Friction Wiper Seal
- The wiper seals are made from a polyurethane impregnated with lifetime lubricant to minimise operating friction.
Cable Bend Radius
- Edge Cable has a minimum bend radius of 4 inches. However in use keep the bend radius as large as possible and the degree of bend to a minimum for optimal performance.
- The above features translates into improved efficiency with reduced operator effort when EDGE cables are used.
Fact Sheet: What is EDGE cable technology
