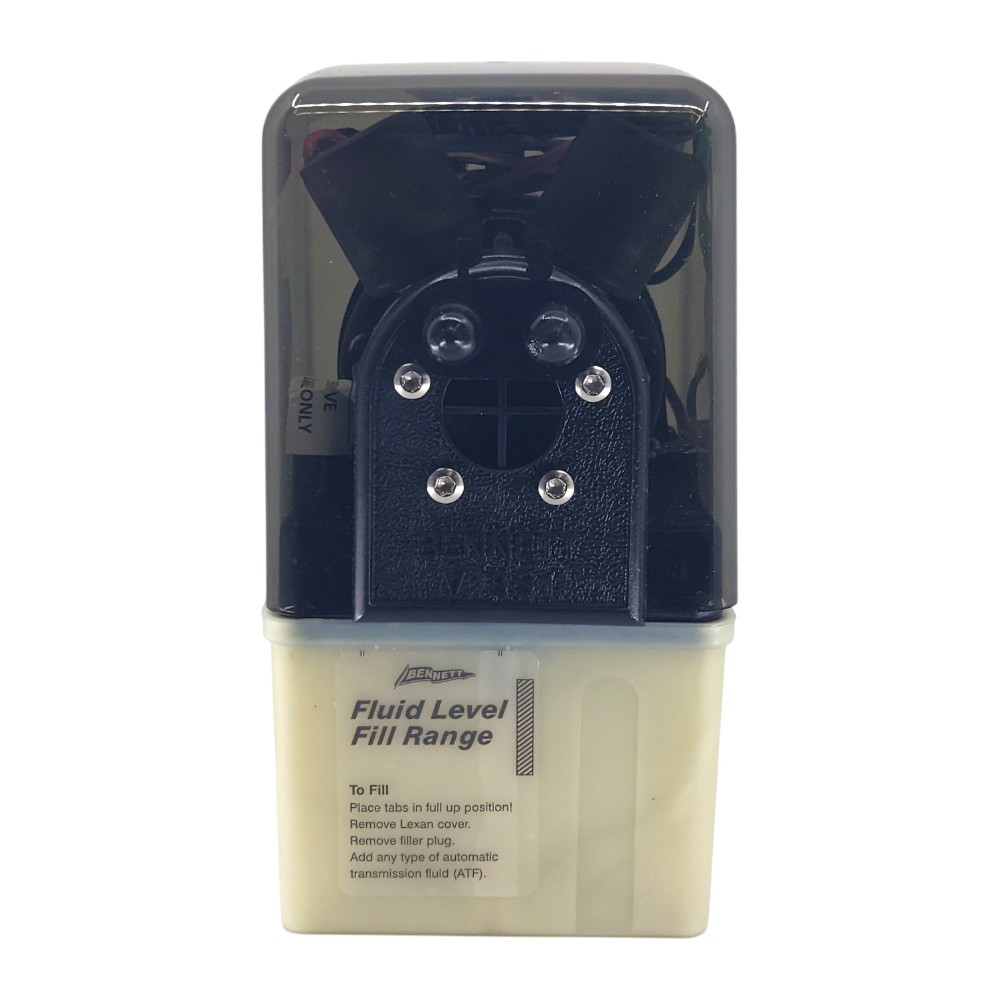

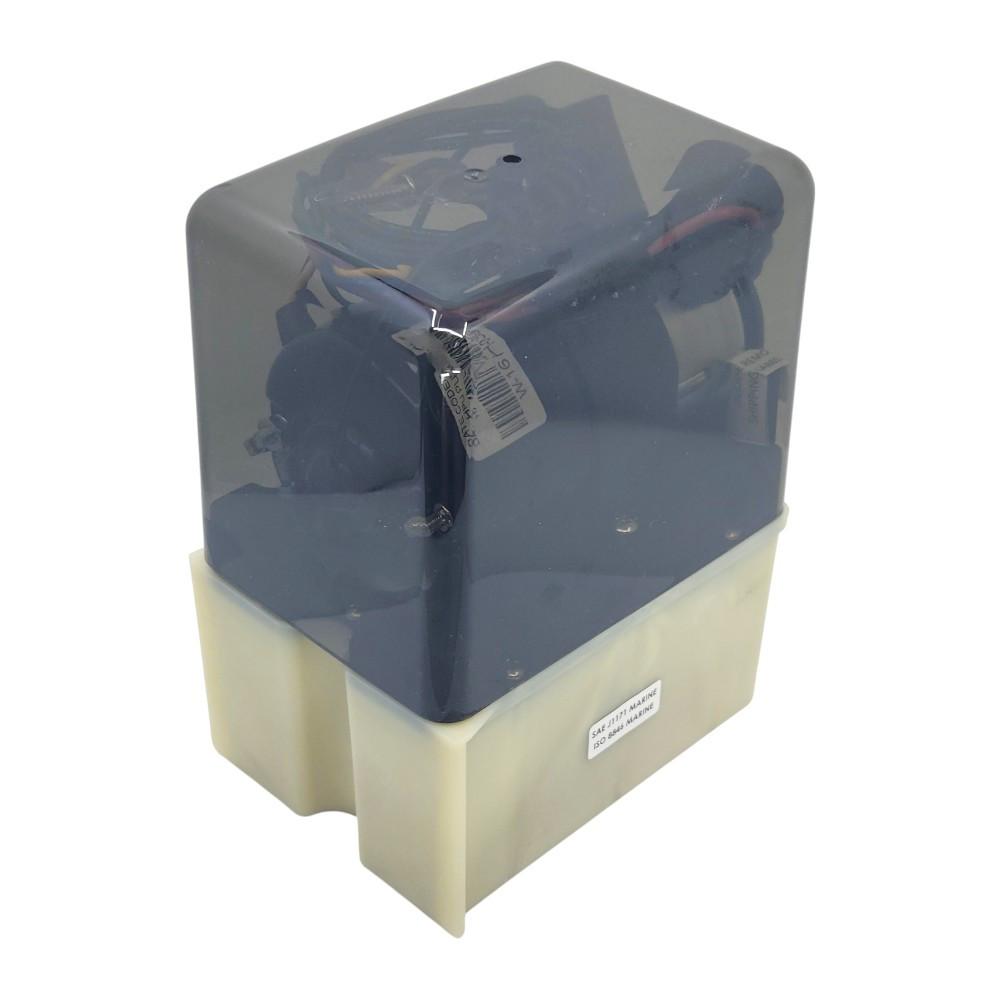

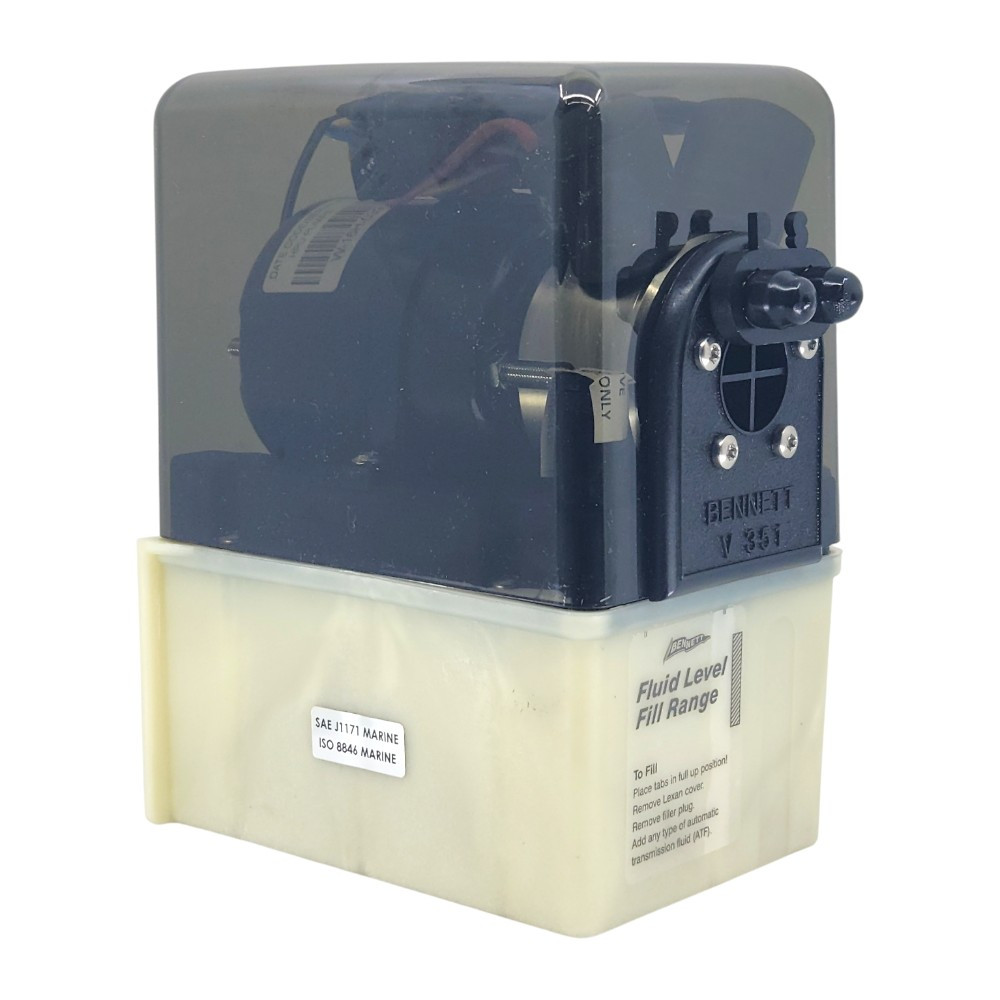

A compact powerhouse that creates hydraulic pressure to lower and raise the trim tabs.

It utilises two solenoid valves to direct the flow of fluid to the actuators.

The solenoid valves lock tightly to secure the tabs in place.

Strength to lower and hold even the largest tabs in place.

The Lexan cover provides water resistance to the electrohydraulic unit and the translucent reservoir allows fluid check at a glance.

The HPU forces both trim tabs full-up to full-down in 8-10 seconds, individually in 4-5 seconds.
(Trim tab travel on dual actuator systems takes twice as long).

- Mounting bracket not included

- Dimensions: 4″ x 7 1/2″ x 5 1/2″

- Uses 650ml of any automatic transmission fluid

- Includes pump, solenoid valves, reservoir and cover.

- Yamaha PN: 6BT-50078-77-00
