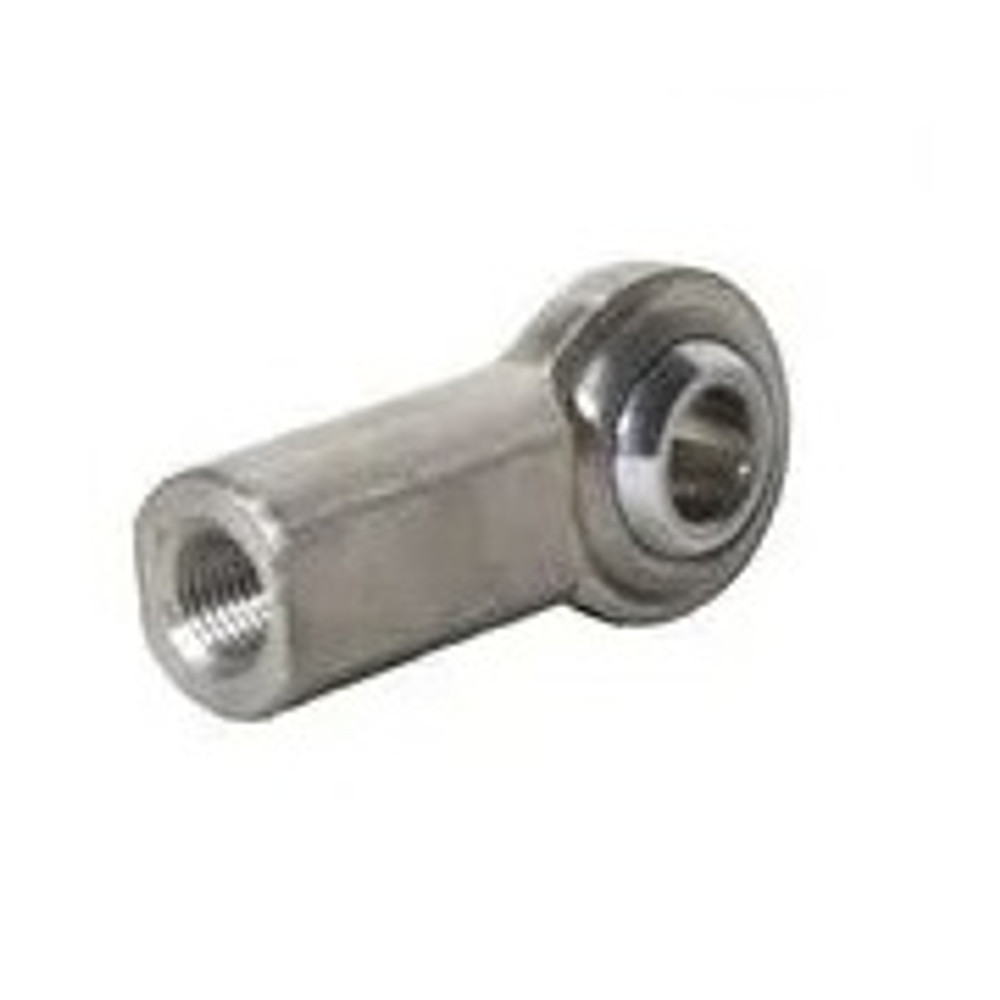

5/8" x 5/8" Stainless Spherical Rod End
Product Name: Female Spherical Rod End
Thread: Female 5/8-10 RH x 1.50″ deep
Ball ID: 5/8″
Housing Material: 300 Series Stainless Steel
Ball Finish: 440c Stainless Steel
Bearing Race: PTFE
Housing Width: 1.50″
Base of Rod End to Center of Ball: 2.50″
Ball Thickness: 0.750″
Ultimate Static Load Rating: 6,933 lbs
Common Other Names for this Product: heim joint, rose joint
Application: This size rod end is often used in hand or foot actuated push-pull linkages.
Alternative Designs: For lighter duty linkage applications, consider our ASFM (steel raced) series, our DXTF (nylon) series, DSTF(stainless) series, or DPF (bronze zerked) series.
Metric Alternative: The metric equivalent to this series is our DXTF series.
Warning: Regardless of a specific product's name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application.
